Are water heater expansion tanks required by code?
Monday, November 22, 2021

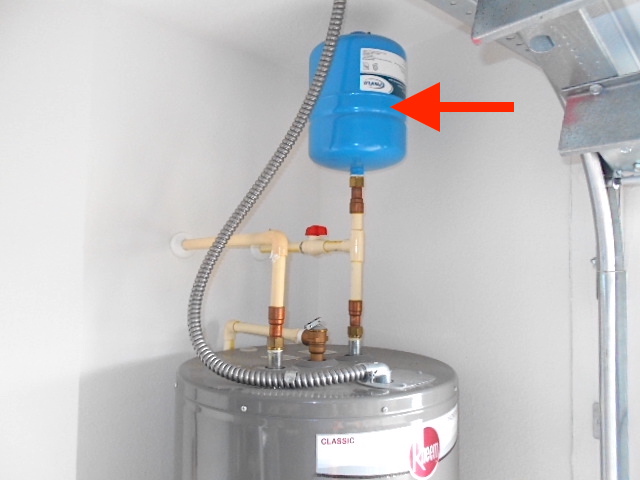

A water heater thermal expansion tank is required for both original and replacement water heaters by the International Residential Code (IRC P2903.4). It’s necessary because water expands when heated and is an incompressible liquid. Without a thermal expansion tank, the expanding water in your pipes has nowhere to go. So it increases the water pressure, sometimes beyond what the plumbing is rated for. This damages your whole system, and leads to pipe leaks, premature water heater failure, and problems with toilet flush valves and the solenoids in dishwashers and washing machines.
But an expansion tank is only required at homes with a closed water supply system, which is defined as one with a device that will not allow your water to flow backwards into the public water supply piping—and possibly contaminate it. Most jurisdictions, including the state of Florida, require homes supplied by a public water utility to have a backflow prevention device. So it is extremely likely that your next water heater will be installed with a thermal pressure tank.
Also see When were water heater thermal expansion tanks first required by code? and What is the little tank on top of the water heater for? and Can a water heater thermal expansion tank be installed sideways/horizontally?
• • • • • • • • • • • • • • • • • • • • • • • • • • • •
