How much can you notch a roof rafter for the seat and heel cuts at bearing?

Saturday, September 19, 2020

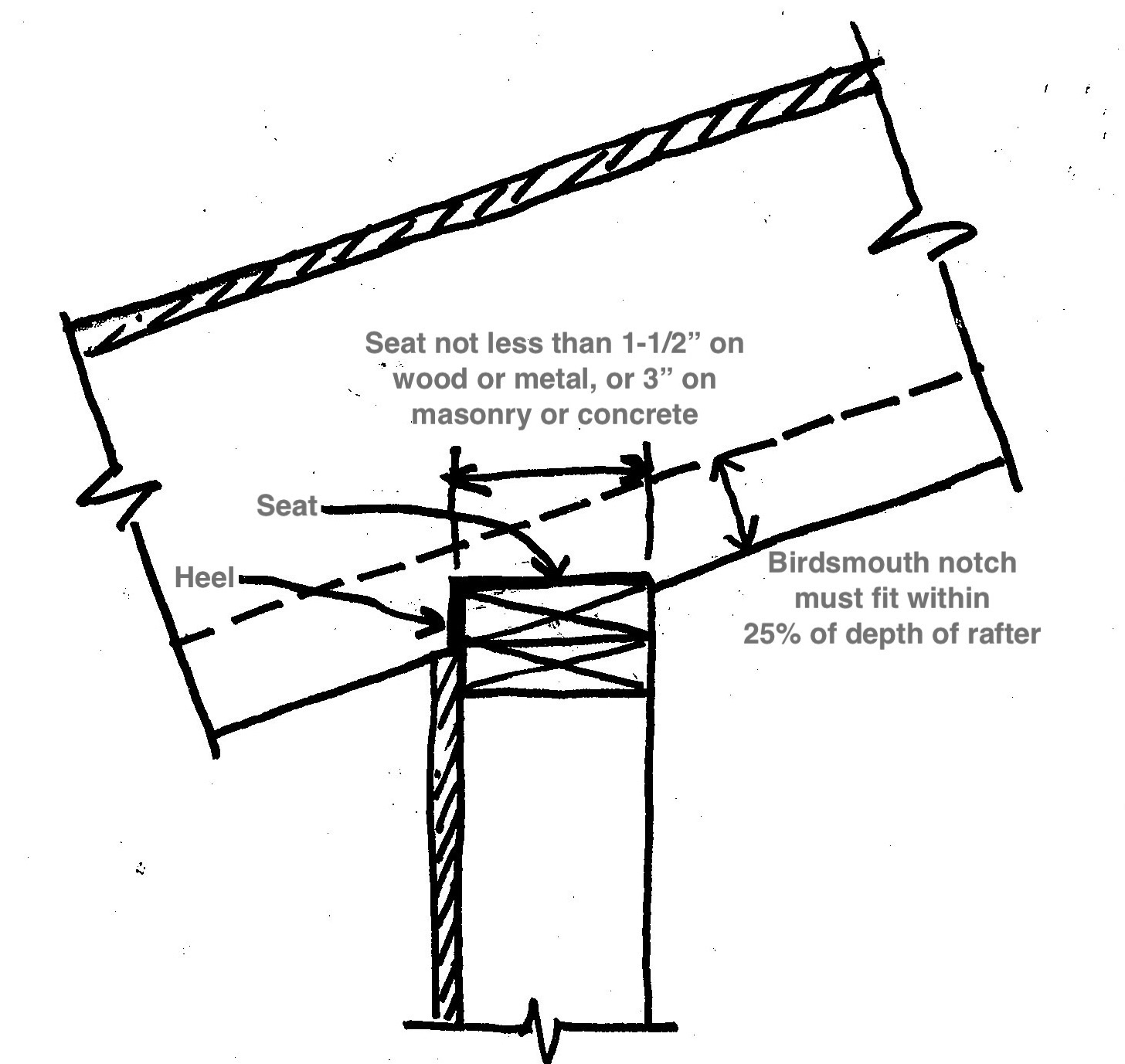

The two International Residential Code (IRC) standards that apply to cutting a birdsmouth in a roof rafter are:
1) "Notches at the ends of the member shall not exceed one-fourth the depth of the member" (IRC R502.8.1). That would be a max of 1-3/8” for a 2x6, 1-3/4” for 2x8, 2-1/4” for 2x10 and 2-3/4” for 2x12.
2) "The ends of each rafter or ceiling joist shall have not less than 1-1/2 inches (38 mm) of bearing on wood or metal and not less than 3 inches (76 mm) on masonry or concrete” (IRC R802.6). Rafters on a block wall are usually installed over a nominal 2-inch thick wood plate on top of the wall, making the 1-1/2” bearing the one that’s applicable in most cases.

    So the two controlling factors are the minimum 1-1/2” bearing and depth of the birdsmouth cut not exceeding 1/4 of the depth of the rafter.

    Cutting the birdsmouth to the maximum 25% depth of a low slope (4/12 or less) rafter can cause the seat to be wider than the top plate, which weakens the rafter near the bearing point and increases the likelihood of a split. An exaggerated example of that is shown above, with a 2x12 rafter on a owner-built home addition that cut away 2/3 of the rafter depth and created a comically long seat. Conversely, on a higher slope roof it may not be possible to get bearing over the full surface of the top plate, but as long as you meet or exceed the 1-1/2” minimum it’s fine.

    Also see our blog posts Are roof trusses better than roof rafters (stick framing)? and Why is there diagonal bracing at the roof rafters in the attic?

• • • • • • • • • • • • • • • • • • • • • • • • • • • •
