Does a home inspector check for aluminum wiring?

Thursday, August 27, 2020

The Standard of Practice of the International Association of Certified Home Inspectors (interNACHI) states that “the inspector shall report as in need of correction the presence of solid conductor aluminum branch-circuit wiring, if readily visible.” But the other major national home inspector association, the American Society of Home Inspectors (ASHI), only specifies that an inspector should examine and describe wiring where visible. You could assume that it includes noting any aluminum wiring, but it is not directly addressed.

    There are actually two types of aluminum wiring, and only one of them is considered unsafe. Solid aluminum wiring is the type to be avoided. It was an alloy only produced during the mid-1960s to mid-’70s. The other, multi-strand aluminum wiring, is code-approved and frequently used today for service entrance cables and wiring to major appliances.

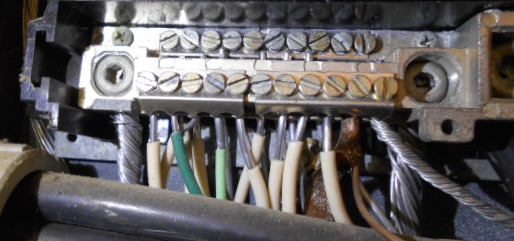

    The location where a home inspector would observe the  light-gray metal color of aluminum wiring is at the wire connections at the neutral bus bar inside the electrical panel. An example is shown above.

    Although solid aluminum wiring could also be found inside wall receptacle boxes around an older home, they are not usually opened for examination by the inspector. Also see our blog posts  and  and  and  and When did they stop using aluminum wiring?
