What is included in an electrical inspection by a home inspector?

Friday, May 8, 2020

Because a home inspection is primarily a visual examination of a property, most of the electrical part of a home inspection involves looking at the components, noting the details of their type, size, and location, along with limited testing of a representative number of (not all) receptacles, AFCIs, GFCIs, and fixtures—and, of course, noting any defects found.

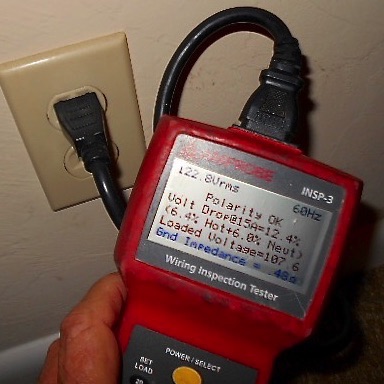

    Although some inspectors use sophisticated electronic testing devices to further evaluate the electrical components and go beyond the minimum standards in other ways, it is not required by the Standards of Practice of the two national home inspector associations, the American Society of Home Inspectors (ASHI) and International Association of Certified Home Inspectors (InterNACHI), along with the State of Florida and other states that license home inspectors and set standards for their inspections.

    Here’s the electrical portion of the ASHI Standards of Practice as an example:

7.1 The inspector shall:

A. inspect:

     1. service drop.
     2. service entrance conductors, cables, and raceways.
     3. service equipment and main disconnects.
     4. service grounding.
     5. interior components of service panels and subpanels.
     6. conductors.
     7. overcurrent protection devices.
     8. a representative number of installed lighting fixtures, switches, and receptacles.
     9. ground fault circuit interrupters and arc fault circuit interrupters.

B. describe:

     1. amperage rating of service.
     2. location of main disconnect(s) and subpanels.
     3. presence or absence of smoke alarms and carbon monoxide alarms.
     4. the predominant branch circuit wiring method.

7.1 The inspector is NOT required to:

A. inspect:

     1. remote control devices.
     2. or test smoke and carbon monoxide alarms, security systems, or other signaling and warning devices.
     3. low voltage wiring systems and components
     4. ancillary wiring systems and components not part of the primary electrical power distribution system.
     5. solar power, geothermal, wind, and other renewable energy systems.

B. measure amperage, voltage, and impedance.

C. determine the age and type of smoke alarms and carbon monoxide alarms.

    The InterNACHI standards are similar, but with a few differences. They do not require the inspector to open any panels to examine the interior wiring, for example.

    Even if the exlusions listed above are not stated directly in the home inspector’s contract agreement, one of the Standards of Practice mentioned above will be referenced as part of the contract agreement.
