Does a home inspector check wiring?

Saturday, May 2, 2020

Inspection of the electrical wiring is a standard part of any home inspection. It is required by the Standards of Practice of both national home inspector associations, the American Society of Home Inspectors (ASHI) and International Association of Certified Home inspectors (InterNACHI), along with the State of Florida and many other states.

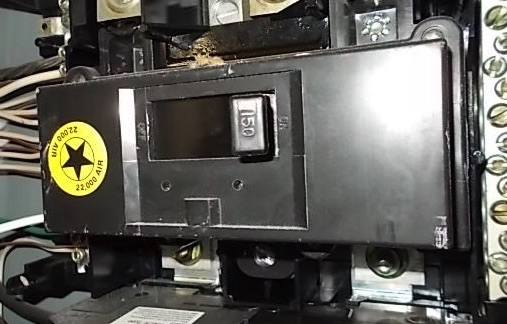

    But, because a home inspection is primarily a visual examination of the home, checking the wiring is limited to wiring that is visible or readily accessible. Much of what can be learned  about a home's wiring can be found by opening the cover panel (dead front) of the electrical panel. This is required by most standards, but excluded by InterNACHI.

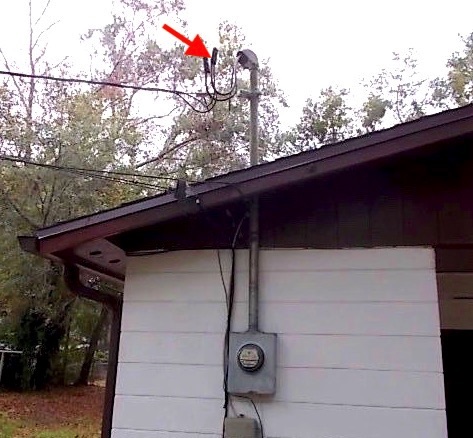

    Wiring may also be exposed to view in the attic, the service drop if it is overhead, or other locations. The inspector is required to examine the service drop, service mast, amperage rating of service, describe the predominant type of wiring, note any solid-conductor aluminum wiring, and any defects found. Examination of wiring is limited the regular household 240/120 volt wiring, and low voltage wiring is excluded from a standard home inspection.  See our blog post Does a home inspector check low voltage wiring? for more on this.

    While the Standards of Practice set minimum standards, a home inspector may choose to exceed them, or the inspection may be limited to less than what is outlined in the standards when agreed to by the homebuyer and specified in an inspection agreement. A four-point insurance inspection would be example of a limited inspection.

    Click on any of the links below to read other articles about what is required to be included, or not, in a home inspection:

AFCI •• Air conditioner •• Ants •• Appliance recalls •• Appliance testing •• Attic •• Awnings •• Barns and ag blgs. •• Bathroom exhaust fan •• Bonding •• Carpet •• Ceiling fans •• Central vacuum •• Chimneys •• Chinese drywall •• Clothes dryer •• Dryer exhaust •• CO alarms •• Code violations •• Condemn a house •• Crawl space •• Detached carport •• Detached garage •• Dishwasher •• Docks •• Doors •• Electrical •• Electrical panel •• Electromagnetic radiation •• Fences •• Fireplaces •• Furnace •• Furniture •• Garage door opener •• Garbage disposal •• Generator •• GFCIs •• Gutters •• Ice maker •• Inspect in the rain •• Insulation •• Insurance •• Interior Finishes •• Grading & drainage •• Lead paint •• Level of thoroughness •• Lift carpet •• Low voltage wiring •• Microwave •• Mold •• Move things •• Help negotiate •• Not allowed •• Outbuildings •• Paint •• Permits •• Pilot lights •• Plumbing •• Plumbing under slab •• Pools •• Questions won't answer •• Radon •• Range/cooktop •• Receptacle outlet •• Refrigerator •• Reinspection •• Remove panel cover •• Repairs •• Repair estimates •• Retaining walls •• Roaches •• Rodents •• Roof •• Screens •• Seawalls •• Septic loading dye test •• Septic tank •• Sewer lines •• Shower pan leak test •• Shutters •• Sinkholes •• Smoke alarms •• Solar panels •• Specify repairs •• Sprinklers •• Termites •• Toilets •• Trees •• Troubleshooting •• Wall air conditioners •• Walk roof •• Washing machine •• Water heater •• Water pressure •• Water shut-offs •• Main water shut-off •• Water softener •• Water treatment systems •• Well •• Windows •• Window air conditioners •• Window blinds •• Wiring

• • • • • • • • • • • • • • • • • • • • • • • • • • •

Here’s links to a collection of our other blog posts about ELECTRICAL WIRING:

Which house appliances need a dedicated electrical circuit?

Can a short circuit cause a high electric bill?

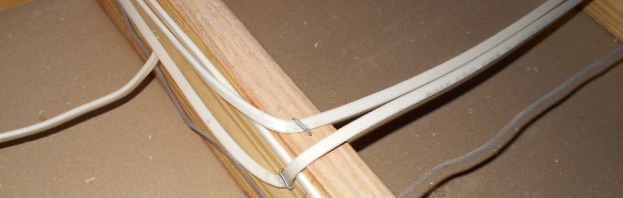

What is the maximum spacing requirement for securing NM-cable (nonmetallic-sheathed cable)?

Is it alright to just put wire nuts on the end of unused or abandoned NM-cable or wiring?

What causes copper wires to turn green or black in an electric panel?

What are typical aluminum service entrance wire/cable sizes for the electrical service to a house?

Why is it unsafe to bond neutral and ground wiring at subpanels?

Should I get a lightning rod system to protect my house?

Why is a strain relief clamp necessary for the cord connection to some electric appliances?

Does a wire nut connection need to be wrapped with electrical tape?

What is the minimum clearance of overhead electric service drop wires above a house roof?

What are the requirements for NM-cables entering an electric panel box?

What is the color code for NM cable (Romex®) sheathing?

Why are old electrical components not always "grandfathered" as acceptable by home inspectors?

How can I find out the size of the electric service to a house?

Can old electrical wiring go bad inside a wall?

What is an open electrical splice?

What are the most common electrical defects found in a home inspection?

What is the life expectancy of electrical wiring in a house?

What is an "open junction box"?

How dangerous is old electrical wiring?

What is a ground wire?

I heard that aluminum wiring is bad. How do you check for aluminum wiring?

What is "knob and tube" wiring?

What is the code requirement for receptacle outlets in a closet?

   Visit our ELECTRICAL and "DOES A HOME INSPECTOR…?” pages for other related blog posts on this subject, or go to the INDEX for a complete listing of all our articles.
