What size in tons is a Friedrich heat pump or air conditioner from the model number?

Tuesday, April 28, 2020

You can determine the “nominal” size of your HVAC system by examining the model number on the data plate at the side of the condenser (outdoor unit). Just like the nominal size of lumber or an air conditioning filter, the exact cooling capacity may be a little more or less than the nominal rating, but it’s close.

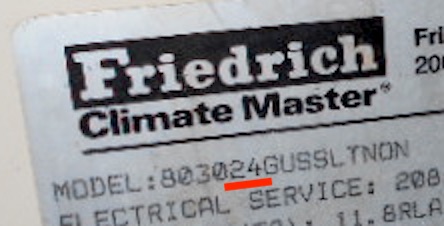

     For Friedrich, you should look near the middle of the model number, and it will be a number divisible by 6 or 12, which represents the nominal BTU of the system in thousands.  A ton of air conditioning equals 12,000 BTU, and 24 divided by 12 equals 2, so the data plate shown above indicates 2 tons.

    Here’s a rundown of the range you will encounter: 18 = 1.5 tons, 24 = 2 tons, 30 - 2.5 tons, 36 = 3 tons, 42 = 3.5 tons, 48 = 4 tons, and 60 = 5 tons.

   If you are unsure whether you have found the right two numbers, you can double-check it by looking for the “RLA” rating on the data plate. RLA is an acronym for Rated Load Amperage, and is what the maximum amperage should be when the condenser is up and running. If you divide the RLA by 6 for older units and 5 or 6 for newer units, you should get a number that approximates (not exactly) the tonnage of the system. Make sure you use RLA and not LRA, Locked Rotor Amperage, which is the surge of amps necessary to overcome inertia and start the system. It averages around five times the RLA.
    To determine the age of a Friedrich system, go to our blog post How can I tell the age of a Friedrich heat pump from the serial number? For the age of another brand or manufacturer, go to our blog post How do I determine the age of my air conditioner?

    Friedrich residential HVAC was acquired by ARCO in the 1980s and became Friedrich Climate Master, specializing in water source heat pumps. Then the Friedrich name was abandoned in 1987, but revived later for window units and mini-splits, which use a different serial number system.

• • • • • • • • • • • • • • • • • • • • •
Field Guide for Home Inspectors, a quick reference for finding the age of 154 brands of HVAC systems, water heaters, and electrical panels, plus 210 code standards for site-built and manufactured homes, and the life expectancy rating of 195 home components. Available at amazon.com for $19.95.
• • • • • • • • • • • • • • • • • • • • • •
