How do I find the size in tons of my heat pump?
Monday, April 27, 2020

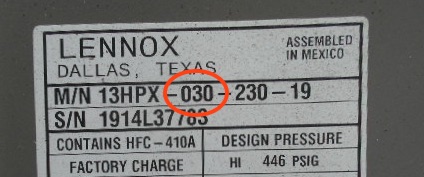

It’s pretty simple once you get the hang of it. Look for a number that is divisible by 6 or 12 somewhere in the center of the model number on the data plate at the side of the heat pump condenser (outdoor unit), like 12,18, 24, 30, 36, 42, 48, or 60.
A ton of air conditioning equals 12,000 BTU's so, for example a “24” in the middle of the model number indicates that it is a 2-ton system, a “30” means 2-1/2 tons, and the “42” in the middle of the model number at the top of the page means the system is 3-1/2 tons.
Here’s a few more examples:
Trane - 4TWR3030A1000AA - 2-1/2 tons
Carrier - 38BYC030360 - 3 tons
York - YCE48B21SA - 4 tons
Goodman - CPRT36-1 - 3 tons
Trane - TTR060C100A2 - 5 tons
Goodman - GSH130241AC - 2 ton
You probably noticed that the last model number had two numbers, “30” and “24,” that are both divisible by 6. Several of the others are the same way. Generally, the second number is the right one. Also, the number of tons of cooling capacity indicated is “nominal,” meaning that the actual BTU’s are approximately the number indicated, but may slightly more or less.
If you are unsure whether you have found the right two numbers, you can double-check it by looking for the “RLA” rating on the data plate. RLA is an acronym for Rated Load Amperage, and is what the maximum amperage should be when the condenser is up and running. If you divide the RLA by 6 for older units and 5 or 6 for newer units, you should get a number that approximates (not exactly) the tonnage of the system. Make sure you use RLA and not LRA, Locked Rotor Amperage, which is the surge of amps necessary to overcome inertia and start the system. It averages around five times the RLA.
