Does code require receptacle on wall behind door swing?

Thursday, April 9, 2020

The National Electrical Code (NEC) does not exempt an area of wall behind a door swing when calculating receptacle outlet spacing requirements in a house. No point along any wall more than two feet wide cannot be more than six feet from a receptacle for most rooms. This translates to a maximum of twelve feet between receptacles.

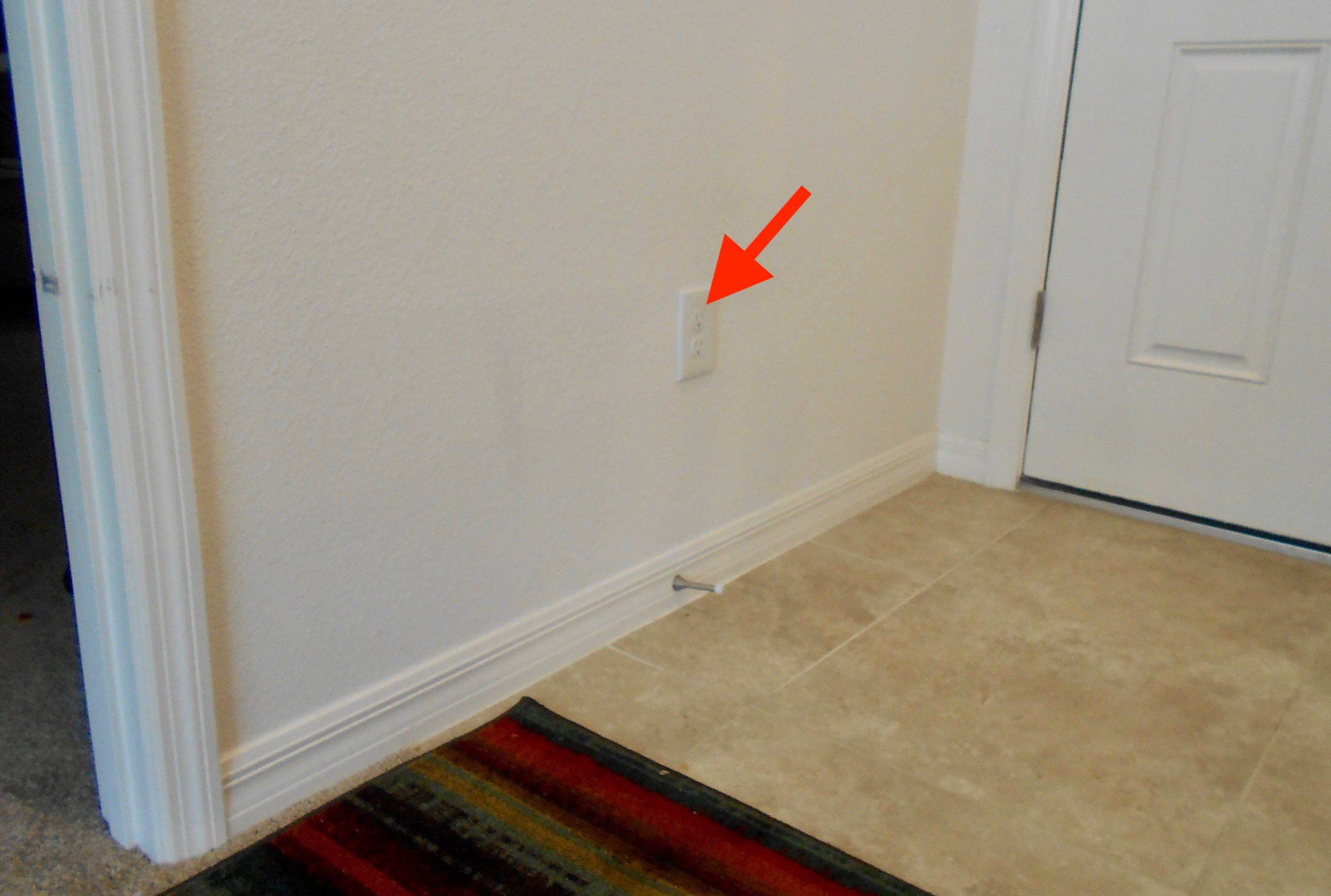

    So a three foot wall behind a door swing requires a receptacle but, in most cases, you just have to count the length of wall behnd the door swing towards the spacing requirement. As long as it is not more than six feet from a receptacle to the edge of the door jamb, it’s acceptable. Here’s a diagram from Code Check that illustrates the spacing standard.

    These standards do not apply to kitchens, bathrooms, closets, hallways, foyers, garages, or outdoor receptacles. Kitchen counters now have a more stringent standard: no point along the back of the counter can be more than 2-feet from a receptacle, and any counter more than 1-foot long requires a receptacle. For all details of kitchen spacing, go to our blog post How far apart should kitchen counter receptacles be spaced?  To find requirements for the other rooms, see our blog posts How far apart should electric receptacles be spaced in a bathroom? and What is the code requirement for receptacle outlets in a closet? and How many electrical receptacle outlets are required in a hallway?  and How far apart should electric receptacle outlets be placed in a garage? and What is the code requirement for receptacle outlets in a foyer? and Is a house required to have outdoor electric receptacle outlets?


   These tighter standards have developed over the years in response to the increasing use of plug-in electric appliances around the home. Home electric consumption has been increasing at a rate of about 5% per year for a while now.

   And, obviously, older homes have fewer receptacles. It’s not uncommon to have one receptacle per bedroom in a 1940s era bungalow, and only one receptacle at the kitchen counter.

   Equally important, though, are locations where an electric receptacle should not be placed:

  •  Receptacles should not be placed lower than 18-inches above a garage floor. Gasoline fumes from a car parked in the garage are heavier than air, and accumulate at the floor. The slight arcing that happens when a cord is plugged-in can set off an explosion.
  • Although one receptacle should be placed near each bathroom sink, it should not be placed behind the sink, to avoid the possibility of the cord drooping into a sink full of water.
  • Receptacles directly over a baseboard electric heater are a no-no. The cord could come in contact with the top of the heater and melt.
  • A receptacle should not be flush-mounted on a horizontal surface where it may have water splashed on it, like at kitchen counter. And a floor receptacle in a dry area, like a living room, should have a special “rated” cover that protects the slots when not in use.

   As electric technology has evolved over the years, so have receptacles. GFCI-protected receptacles are now required in wet areas, for personal shock protection. See our blog post Where are GFCI receptacle outlets required?

    AFCI-protected receptacles, which recognize arcing in the circuit for fire protection, have also been phased into the code requirements. See our blog When did arc fault circuit interrupter (AFCI) breakers first become required? to learn more.

    And receptacles that only open to allow standard cord prongs (and not any metal object that a curious child may try to stick into it), called tamper resistant, are the latest improvement. See How I can tell if a receptacle outlet is tamper resistant? for details. Also, for height of receptacles, see What is the height requirement for an electric receptacle outlet?


• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
