Can an electrical panel have more than one main breaker?

Saturday, April 25, 2020

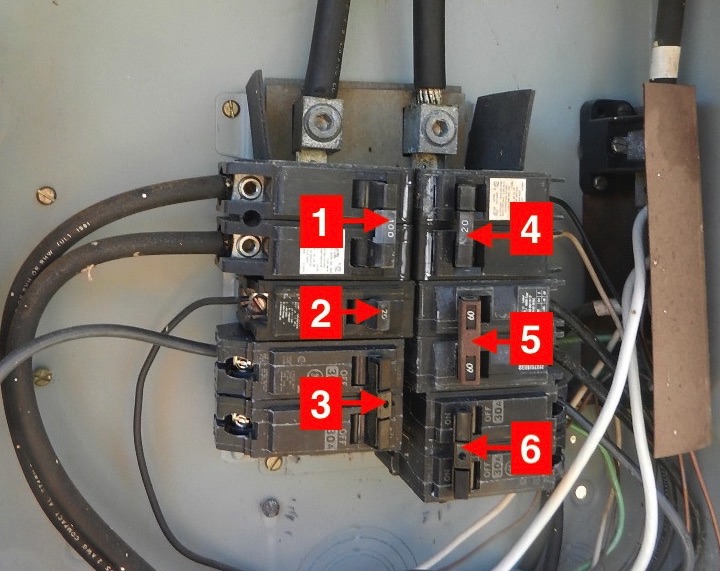

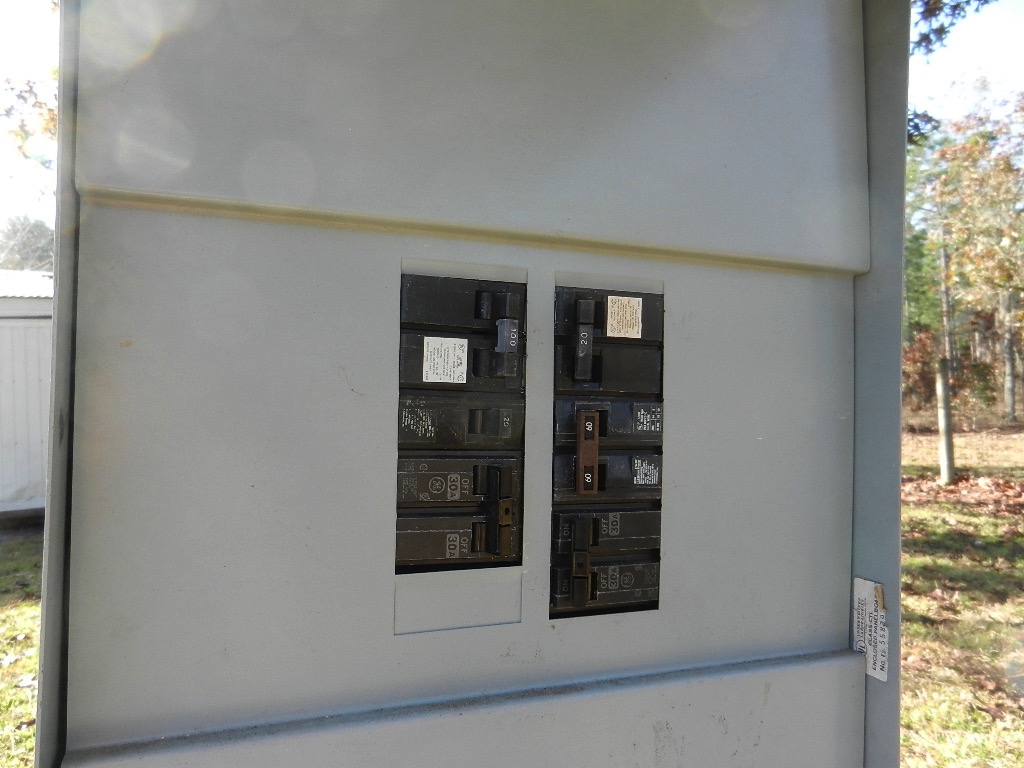

A main service panel can have up to six main breakers, per National Electrical Code [230.72(A)]. Almost all modern panels have a single main breaker, which is called a “service disconnect” in the electrical code, but more are allowed. So the panel shown above and below, which is the main service panel for an older mobile home, is code compliant because it requires exactly the maximum allowed of six switch-throws to shut off all power to the home.

    However it does not meet other code requirements:

1) Circuits are not labeled as required.
2) Because all six breakers are main breakers, they must be marked as such on dead front.
3) Several circuit wires are undersized for the rating of their breaker.

    Also, two 240V-breakers are being used for 120V circuits, and there are different brands of breakers in the panel. Both these things are allowed, but not recommended. Some manufacturer's breakers are rated for installation in another panel brand, but panel manufacturers do not honor warranties when other manufactuer’s breakers are installed. And there is one slot open for an additional breaker in the panel, but it cannot be used because installation would make the panel exceed the six-main breaker rule.

    There was an era in the mid-20th century when panels with multiple main breakers were common. See our blog post What is a split bus electric panel? for more on this.

• • • • • • • • • • • • • • • • • • • • • • • • • •
