Do floor receptacle outlets count for code spacing requirements?

Monday, March 16, 2020

A floor receptacle outlet cannot be counted towards the minimum requirements, either for spacing between receptacles or minimum number of receptacles per area, unless the floor receptacle is within 18 inches of the wall, per National Electrical Code [NEC 211.52(A)(3)].

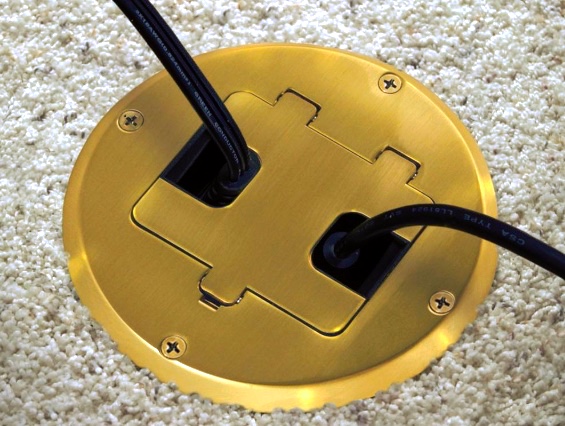

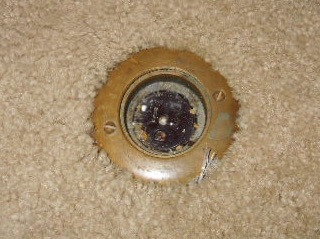

   Also, any receptacle installed in or on a floor must be rated for floor installation [NEC 314.27(B)]. This means it must be able to be sealed shut when not in use, and there are three ways this is done: with a removable cover, a hinged cover, or pop-up. The removable cover is problematic because it is often lost, and an unused floor receptacle begins to collect dust and debris as in the photo below.

• • • • • • • • • • • • • • • • • • • • • • • • • • •
