Can ground attached to neutral fool a receptacle tester?

Thursday, February 20, 2020

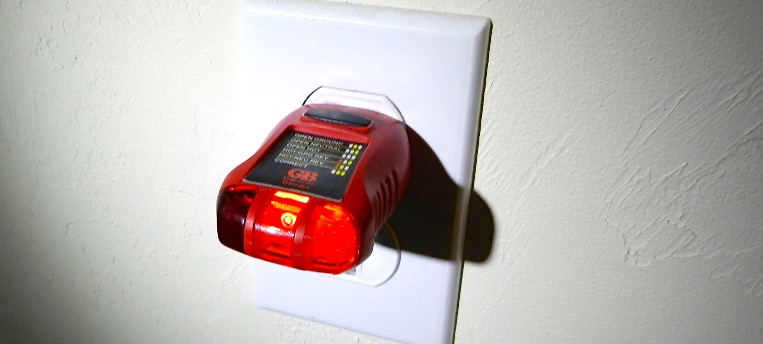

A receptacle ground slot connected to the neutral wire is termed a false ground, although electricians routinely call it a “bootleg ground” or “cheated ground.” Unfortunately, it will trick a three-light tester into confirming that a receptacle is grounded when it is not.

    When upgrading to a three-slot receptacle in a two-wire system without a ground wire, if a short “jumper” wire is used to connect the ground screw at the side of the receptacle to the adjacent neutral screw, the connection deceives a three-light tester because it can recognize that the new ground slot will accept the flow of electricity, but cannot determine if the ground and neutral are traveling along the same path.

    Two different $300 plug-in receptacle circuit analyzers (Ideal Suretest 61-165 and  Amprobe INSP-3) will indicate the presence of a false ground. We prefer the Amprobe, shown below, but both are good. A simpler, although more time-consuming, test method is to open a couple of receptacles and check the wire connections for that jumper wire when examining three-slot receptacles in a pre-1960 house—after shutting off the breaker, of course.

    Also, see our blog post Is an ungrounded electric receptacle outlet dangerous?

• • • • • • • • • • • • • • • • • • • • • • • • • • •
