An electrical panel is required to have a clear area in front of it that is 30-inches wide by 36-inches deep and 78-inches high for service, per National Electrical Code [NEC 110.26 (A)(1)]. The 30-inch width in front of the panel does not have to be centered, although it is shown that way in the diagram.
Water heaters require clearance in front of them at the service side also. A gas water heater needs a 30-inch by 30-inch area, per International Residential Code (IRC M1305.1.2), and an electric water heater has the same 30-inch by 36-inch requirement as an an electrical panel, per National Electrical Code (NEC 110.26[A]). There service areas of panel and water heater can overlap, of course.

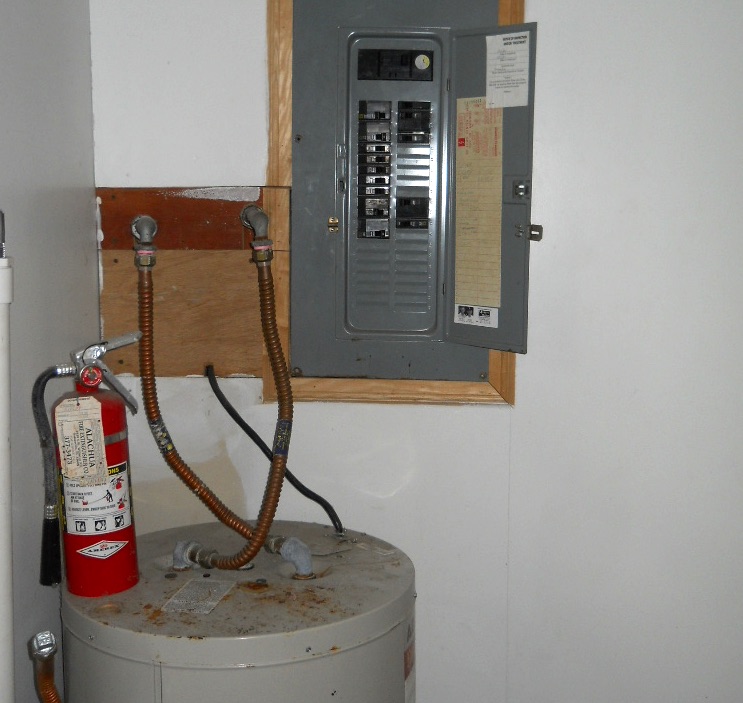

And, yes, the example shown at the top of the page is an egregious violation.
• • • • • • • • • • • • • • • • • • • • • • • • • • • •
