Do I need a pan under a water heater in the garage?

Saturday, July 13, 2019

The Residential Edition of the Florida Building Code (FBC-P2801.6) states that “where a storage tank-type water heater or a hot water storage tank is installed in a location where water leakage from the tank will cause damage, the tank shall be installed in a pan.” The International Residential Code (IRC) is similar.

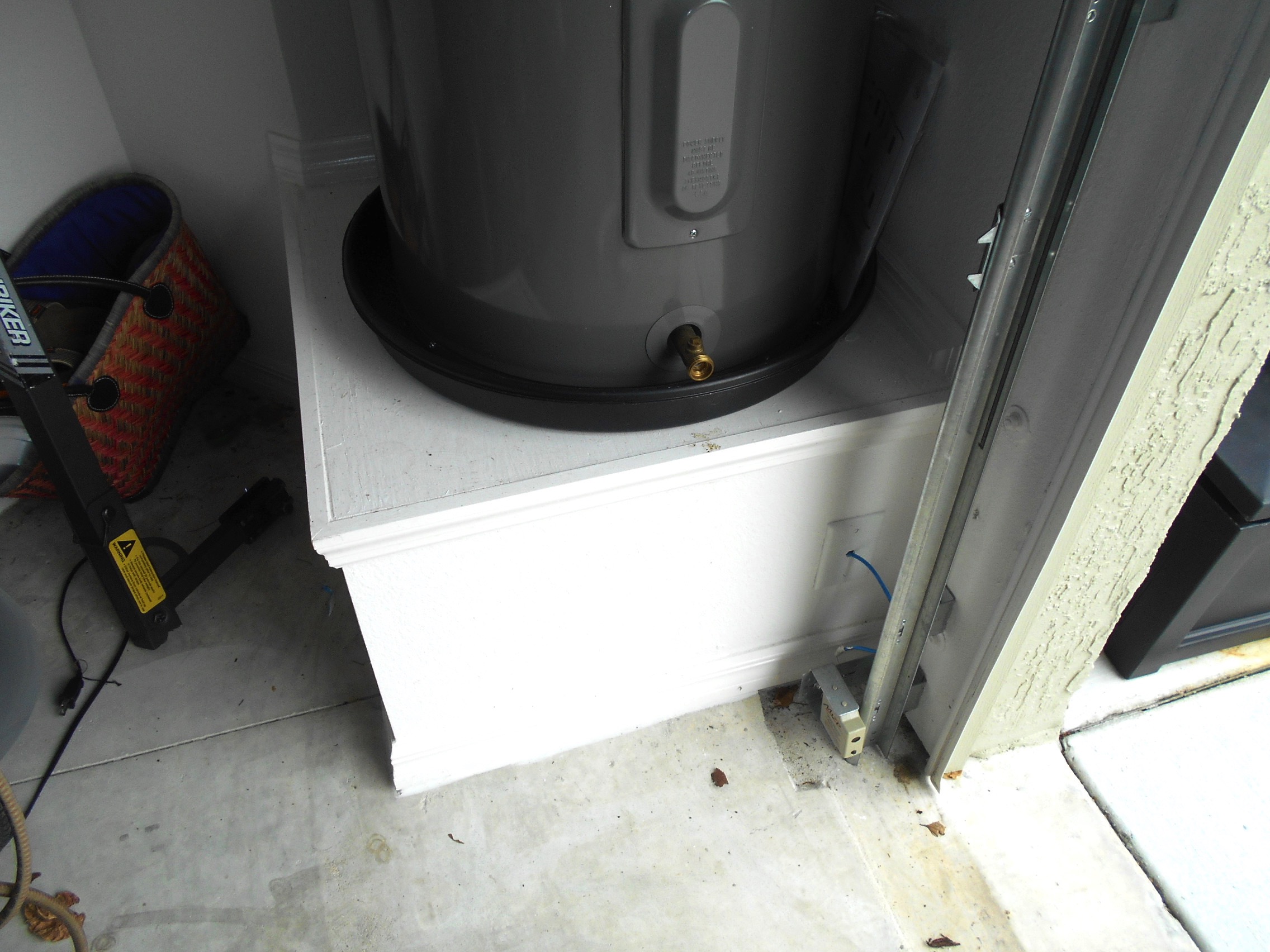

    The concrete floor of a garage is required to be sloped towards the garage door and any leakage will drain out under it; so, if the water heater is mounted on the floor, leakage will not cause any damage. A water heater mounted on a wood-framed and drywall-sided platform, though, would be damaged by leakage, and a pan and drain is necessary.

    The pan is required to have a drain to the exterior, but an exception is allowed at FBC-P2801.6.1: “where a pan drain was not previously installed, a pan drain shall not be required for a replacement water heater installation."

    A pan and drain is still a good idea in a garage, even if not required, if there is the possiblity that leakage would damage stored items around it. For more on pans, see our blog post When is a water heater drain pan required?

• • • • • • • • • • • • • • • • • • • • • • •
