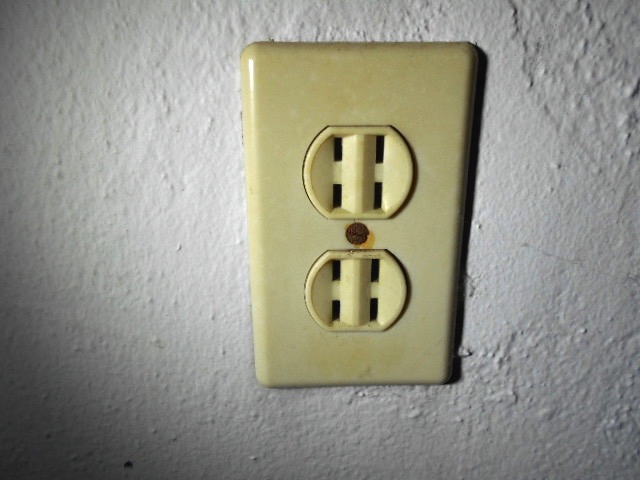

What is this 120-volt duplex receptacle with four slots at top and bottom?

Monday, May 6, 2019

We found this one in a late 1950’s house that had virtually no remodeling since it was built. Although the receptacle looks like it was designed to take a 4-prong plug, it is actually an ungrounded (2-wire) quad receptacle with four sockets to plug into, manufactured by GE during the 1950s. Each plug has to be a narrow-type in order to plug in all four. It was not a popular product and, shortly after this one was installed, the NEC changed to require grounded (three-slot) receptacles. Here’s what it looks like from the back.

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
