What is the code required clearance in front of an electric panel?

Thursday, May 9, 2019

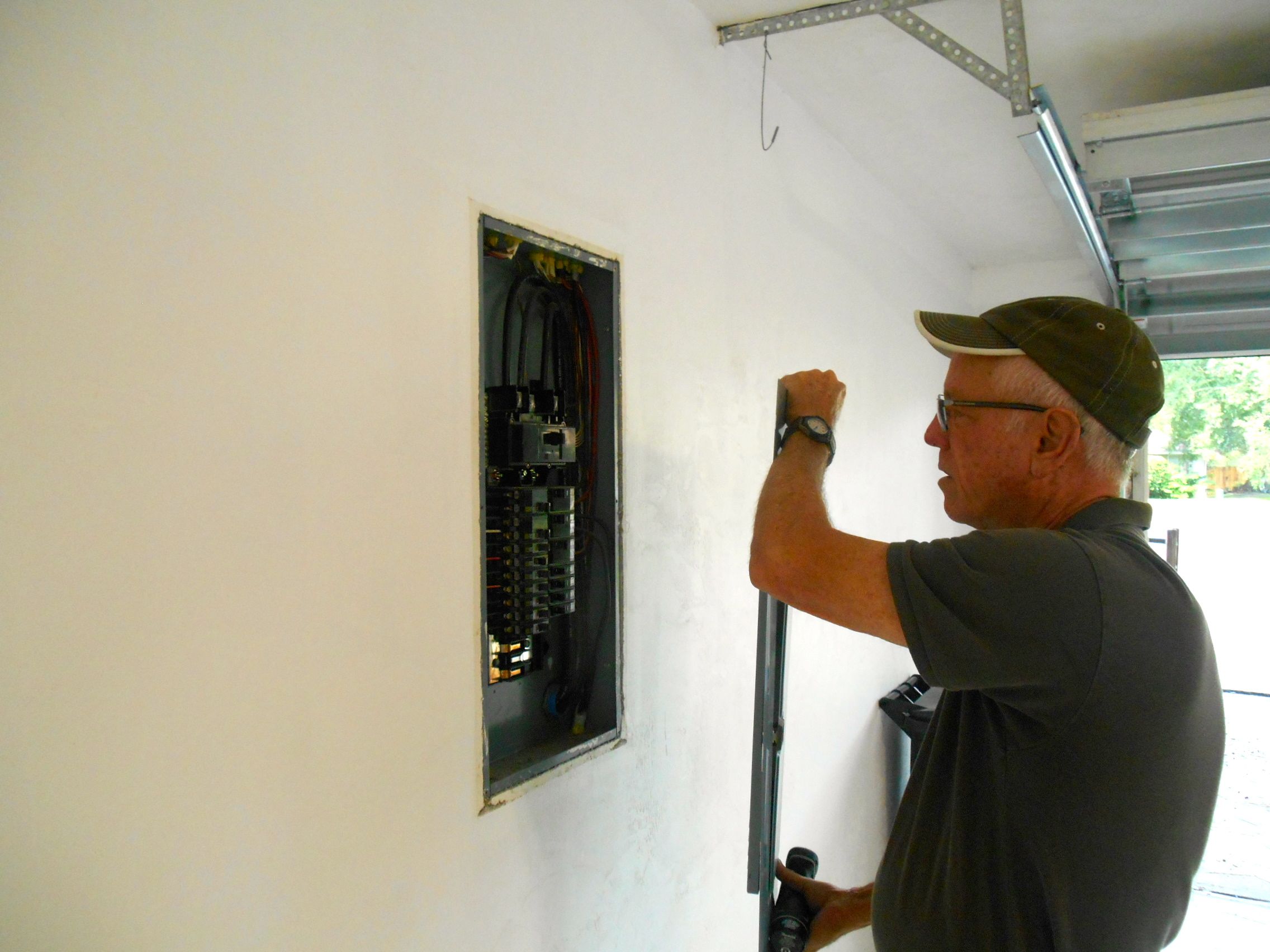

The National Electrical Code [NEC 110.26 (A)(1&2)] requires a clear area for access and working in front of an electric panel that is 2.5 feet (30”) wide, 3 feet (36”) deep, and 6.5 feet (78”) high for a regular residential 120/240-volt panel. The 2.5 foot width in front of the panel does not have to be centered, although it is shown that way in the diagram.

   There is one exception to this standard: if there are “exposed live parts on both sides of the working space,” which is unlikely in a residential setting, then the depth increases to 5 feet. Also, “distances shall be measured from the exposed live parts or from the enclosure or opening if live parts are enclosed."

    Also, storage is not allowed in the required working space, per NEC 110.26(B), the panel door must swing open a minimum of 90º, per NEC 110.26(A)(2), a panel cannot be located in a clothes closet, bathroom, or on stairs, per NEC 240.24 (D,E,F), and the area in front of the panel must be illuminated, per 110.26(D).
