How many tons is my Airquest air conditioner or heat pump?
Thursday, April 4, 2019

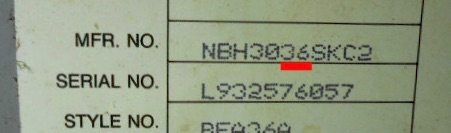

You can determine the size in tons of your Airquest HVAC system by examining the model number on the data sticker at the side of condenser (outdoor unit). Look for the last two of the four numbers in the center of the model number. They are divisible by 6 or 12, which represent the nominal BTU of the system in thousands. A ton of air conditioning equals 12,000 BTU, and 36 divided by 12 equals 3, so the data plate below indicates the system is 3 tons.
Here’s a rundown of the range you will encounter: 18 = 1.5 tons, 24 = 2 tons, 30 - 2.5 tons, 36 = 3 tons, 42 = 3.5 tons, 48 = 4 tons, and 60 = 5 tons.
If you are unsure whether you have found the right two numbers, you can double-check it by looking for the “RLA” rating on the data plate. RLA is an acronym for Rated Load Amperage, and is what the maximum amperage should be when the condenser up and running. If you divide the RLA by 6 for older units and 5 or 6 for newer units, you should get a number that approximates (not exactly) the tonnage of the system. Make sure you use RLA and not LRA, Locked Rotor Amperage, which is the surge of amps necessary to overcome inertia and start the system. It averages around five times the RLA.
To determine the date of manufacture of an Airquest system, see our blog post How can I tell the age of an Airquest air conditioner, heat pump, or furnace from the serial number?
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
