What is the average life expectancy of an electrical panel in a house?

Sunday, December 15, 2019

How long does an electrical panel last?

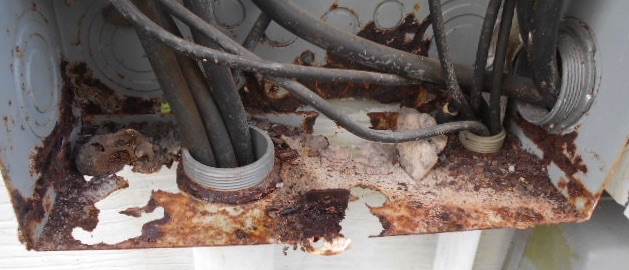

You can expect an electrical panel to last 50 years or more, depending on where it is installed. An exterior panel exposed to both sun and rain can corrode through as early as 20 years if there is water leakage into the panel that allows standing water inside. Panels exposed to a corrosive atmosphere, such as in a room where pool chemicals are stored, will also have a shortened life.

    An interior location is conducive to a longer life; and being in a conditioned space is even better. This is what Schneider Electric, manufacturer of Square D panels, has to say about panel life:

"Since panelboards are basically sheet metal, insulators, and bus bar assembled parts we believe that the useful panelboard life pertains more to the devices that are installed on a panelboard rather than the panelboard construction itself. For example a circuit breaker or switch installed in a panelboard is more likely to reach it's end of life before the panelboard structure itself. A circuit breaker or switch can be replaced as needed while the panelboard itself continues to operate. Obviously there may be instances when current carrying parts such as branch connectors may need to be replaced, but again the panelboard construction can continue to operate."

    Here’s a graph comparing the life expectancy of a panel to other electrical components in a home.
    Also, see our blog posts How do I determine the age of an electrical panel? and When should a corroded or damaged electric panel cabinet or disconnect box be replaced?

• • • • • • • • • • • • • • • • • • • • •
Field Guide for Home Inspectors, a quick reference for finding the age of 154 brands of HVAC systems, water heaters, and electrical panels, plus 210 code standards for site-built and manufactured homes, and the life expectancy rating of 195 home components. Available at amazon.com for $19.95.
• • • • • • • • • • • • • • • • • • • • • •

Here’s links to a collection of our other blog posts about ELECTRIC PANELS:

What causes copper wires to turn green or black in an electric panel?

What is the maximum number of circuit breakers allowed in an electric panel?

What is a tandem circuit breaker?

When did arc fault circuit interrupter (AFCI) breakers first become required?

Can an electric panel be located in a closet?

Can an electric panel be located in a bathroom?

Can you add circuit breakers by different manufacturers to an electric panel if they fit?

My circuit breaker won't reset. What's wrong?

What is a split bus electric panel?

How do I identify a combination AFCI (CAFCI) circuit breaker?

What does a circuit breaker with a yellow or white test button indicate?

What is the maximum gap allowed between the front of a recessed electric panel box and the wall surface surrounding it?

What are the requirements for NM-cables entering an electric panel box?

Why is a fuse box/panel an insurance problem for homebuyers?

Why is bundled wiring in an electric panel a defect?

What is the difference between GFCI and AFCI circuit breakers?

Why are old electrical components not always "grandfathered" as acceptable by home inspectors?

What happens when you press the "TEST" button on a circuit breaker in an electric panel?

What is a Dual Function Circuit Interrupter (DFCI)?

What is the difference between a Combination Arc Fault Circuit Interrupter (CAFCI) and an Arc Fault Circuit Interrupter (AFCI) circuit breaker?

What is the difference between "grounded" and "grounding" electrical conductors?

What does it mean when a wire is "overstripped" at a circuit breaker?

Why is an old fuse panel dangerous?

Who is the manufacturer of those "bad" electric panels?

Why is the circuit breaker stuck in the middle?

What is a double tap at a circuit breaker?

What is the right electric wire size for a circuit breaker in an electric panel?

What is the life expectancy of a circuit breaker?

My circuit breaker won't reset. What's wrong?

Why do some breakers in my electric panel have a "TEST" button on them?

What is the right size electric panel for a house?

• What do I need to know about buying a whole house surge protector?

What is the maximum allowed height of a circuit breaker (OCPD) above the floor?

• What is the maximum height you can mount an electric panel above the floor?

• What is the code required clearance in front of an electric panel?

What is the main bonding jumper and where do it find it in an electric panel?

   Visit our ELECTRIC PANELS and LIFE EXPECTANCY pages for other related blog posts on this subject, or go to the INDEX for a complete listing of all our articles.

NOTE: These life expectancies are based on data provided by InterNACHI, NAHB, FannieMae, and our own professional experience. Because of the numerous variables that can affect a lifespan, they should be used as rough guidelines only, and not relied upon as a warranty or guarantee of future performance.
