## How do I tell the size in tons of my WeatherKing air conditioner or heat pump?

Monday, December 16, 2019

You can determine the “nominal” size of your HVAC system by examining the model number on the data plate at the side of the condenser (outdoor unit). Just like the nominal size of lumber or an air conditioning filter, the exact cooling capacity may be a little more or less than the nominal rating, but it’s close.

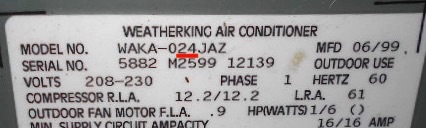

For WeatherKing, you should look for the two numbers in the second cluster of digits of the model number, which will be divisible by 6 or 12, and represents the nominal BTU of the system in thousands. A ton of air conditioning equals 12,000 BTU, and 24 divided by 12 equals 2, so the data plate below indicates the system is 2 tons.

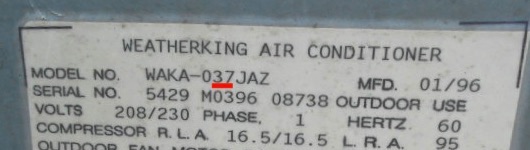

WeatherKing is one of the few brands that varies slightly from this format sometimes. For example, the data plate shown below is for a nominal 3 ton unit, although the number is 37 instead of 36.

Here’s a rundown of the range you will encounter: 18 = 1.5 tons, 24 = 2 tons, 30 - 2.5 tons, 36 = 3 tons, 42 = 3.5 tons, 48 = 4 tons, and 60 = 5 tons.

If you are unsure whether you have found the right two numbers, you can double-check it by looking for the “RLA” rating on the data plate. RLA is an acronym for Rated Load Amperage, and is what the maximum amperage should be when the condenser up and running. If you divide the RLA by 6 for older units and 5 or 6 for newer units, you should get a number that approximates (not exactly) the tonnage of the system. Make sure you use RLA and not LRA, Locked Rotor Amperage, which is the surge of amps necessary to overcome inertia and start the system. It averages around five times the RLA.
To determine the age of your WeatherkIng system go to our blog post How do I determine the age of a WeatherKing air conditoner, heat pump, or furnace from the serial number? For the age of another brand or manufacturer, go to our blog post How do I determine the age of my air conditioner? and, for other key specs, see one of these other blog posts:
