What is a dead front GFCI or blank face GFCI?

Tuesday, October 15, 2019

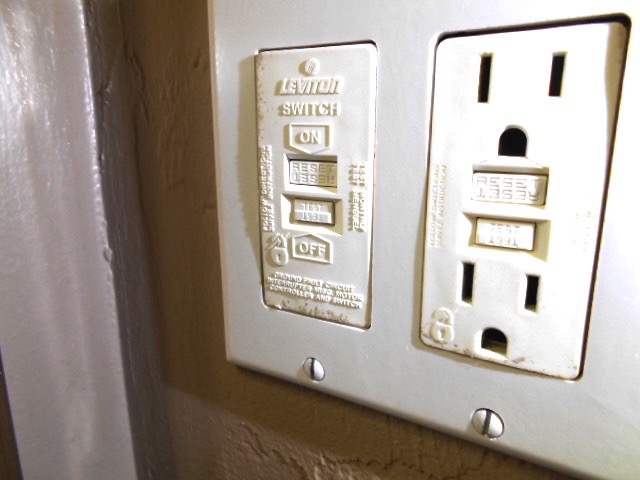

It looks like a push-button wall switch to some people, but is actually a Ground Fault Circuit Interrupter (GFCI) device that provides shock protection for a remote appliance or receptacles, and is called “dead front GFCI” or sometimes “blank face GFCI.” One is shown above at left, next to a regular GFCI receptacle on the right side.

  It is exactly the same device that is in the center of a duplex receptacle in the wet locations of modern homes (kitchen, bathroom, garage, exterior), but without an outlet above and below it. One button is marked “TEST” and can be pushed to verify that the device is still functional, and the other is marked “RESET” for reactivating the circuit after a test-button simulation of a ground fault or an actual ground fault.

    We most often see them used for protection of a bathroom spa tub pump and they are usually located on the wall next to the main electric panel or in the bathroom that has the spa tub, as in the photo above. Because the receptacle for the pump is in a small compartment that is not easily accessed, this device provides a more convenient location to reset the GFCI if it trips.

    Also, see our blog post What electrical hazards does a Ground Fault Circuit Interrupter (GFCI) NOT protect against?

• • • • • • • • • • • • • • • • • • • • • • • • • • •
