What does an ultraviolet air treatment system do?

Saturday, September 22, 2018

It bathes the area around it with UV-light, killing any bacteria and virus, along with some mold reduction, on the surfaces it shines on and also in the air it shines through. The technical term for it is “ultraviolet germicidal irradiation,” and it has only line-of-sight effectiveness. If the UV-light is not shining on a surface, then it will not be disinfected.

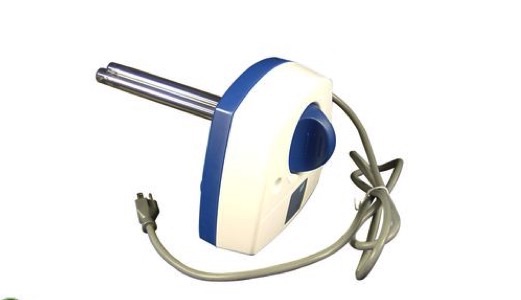

   The photo above shows a unit manufactured by Honeywell installed in a supply air duct above an air conditioning air handler’s evaporator coils. When installed in this location, it treats both the surfaces of the evaporator coils and the air flowing through the duct. The photo below shows the same unit before installation.

    The system can also be installed in the return air duct to treat all incoming air in the air conditioning system. This particular UV-light system is activated by air flow in a duct.

    A UV air treatment system, in conjunction with an air filtration media, can be helpful for people with allergies or a compromised immune system and, when the evaporator coil area is irradiated, it can also reduce the musty smell emanating from a system with mold growth on wet surfaces by killing the mold.

    Unfortunately, although a UV light can kill mold on the evaporator coil surfaces that it shines on directly and continuously, mold spores floating in the air through the evaporator coil are not exposed to the light long enough to have an effective kill rate.

    UV air treatment devices come in many shapes and sizes, and the Honeywell unit is just one example. But, if you see a small  to medium-size box stuck on the side of a main supply or return duct near an air handler and it has the words “ultraviolet” on it along with a warning about not directly viewing the light, then it is likely a UV air treatment system.

• • • • • • • • • • • • • • • • • • • • • • • • • • • •
