How do I determine if a water heater is gas or electric?

Sunday, September 23, 2018

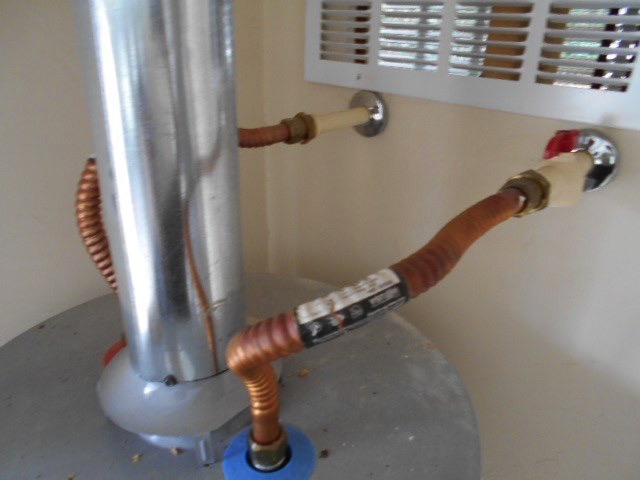

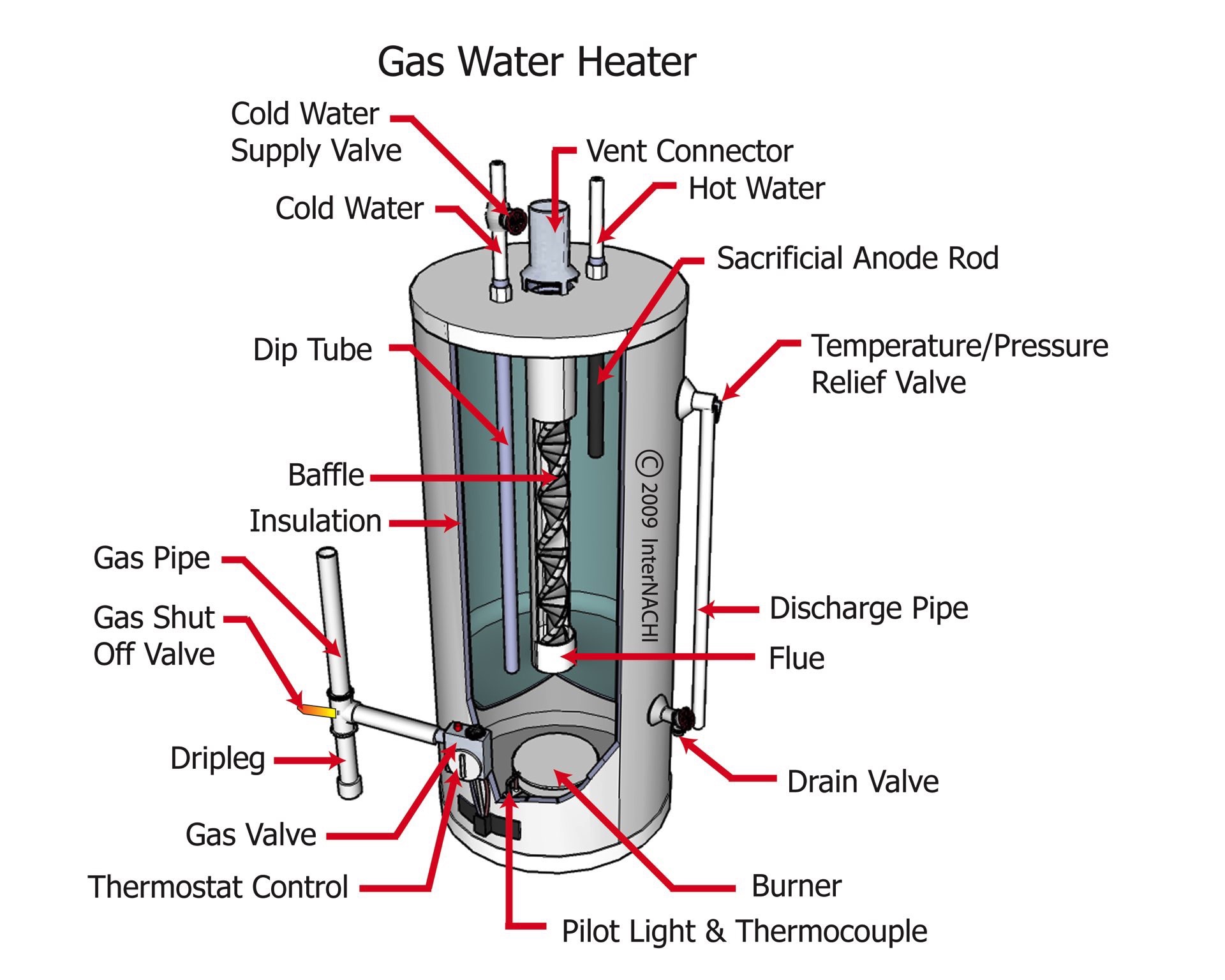

Look at the top of a tank-type water heater. If there is a flue (round metal tubing) rising out of the center of the top of the water heater, then it is a gas water heater. Also, an older (pre-2002) gas water heater has an access panel to the burner at the bottom of the tank to light the pilot light, and all have a dial to adjust the temperature in the same area.

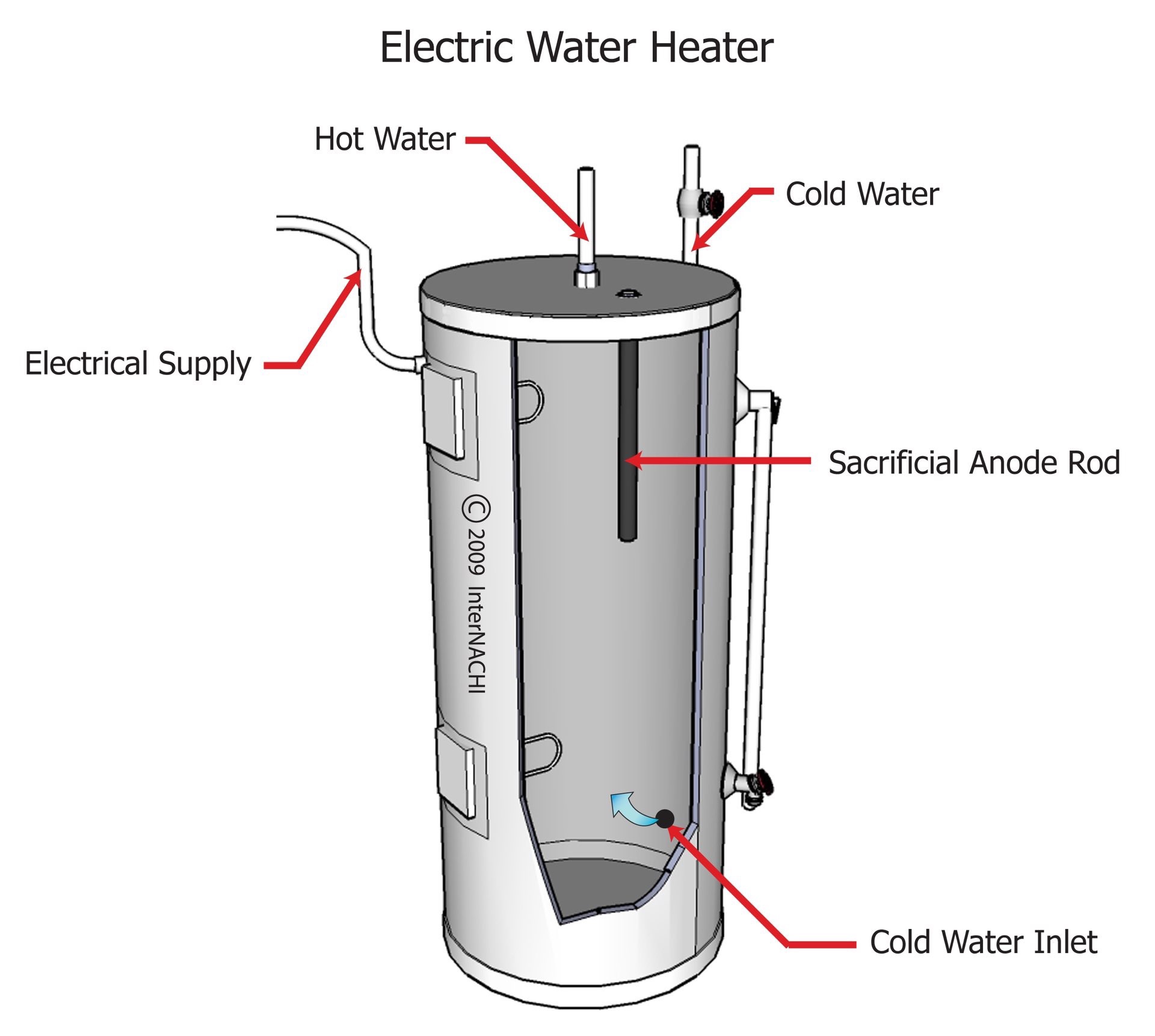

   An electric water heater does not have a flue and, instead, has electric cable or conduit connected to it—typically at the top surface. The only exception to this way of determining what fuel source a water heater uses is a tankless (also called “on demand”) gas water heater installed at an exterior wall. It will have louvers around the top area to exhaust combustion gases instead of a flue, whereas an electric tankless water heater will not have the louvered vents—although we have never seen an on-demand electric water heater installed at an exposed exterior location.

    Also, see our blog post What's that powdery crust on the pipe connections at the water heater?

• • • • • • • • • • • • • • • • • • • • • • • • • • •
