When is a water heater drain pan required?

Sunday, July 1, 2018

According to the International Residential Code (IRC) and Florida Building Code (FBC) at section P2801.5, a drain pan is required for a water heater in any of these areas of a home:

  •  Any level above the ground floor,
  •  Or in attics or ceiling areas,
  •  Or within the habitable space.

The pan must be a corrosion-resistant metal of minimum 24-gauge or other rated material, with sides at least 1-1/2” deep. A drain pan is not required for a water heater in a garage.

    A drain pipe should be connected to the side of the pan, made of material rated for water supply pipe, which means that PVC is not acceptable. The pipe has to be at least the same diameter as the cold water supply pipe to the water heater, and it must terminate outside within 6” to 24” of the ground or into an indirect waste receptor. See our blog post “What is an indirect waste receptor?” for more about that alternative.

    Here’s some photos of typical defects we find with water heater pan installation:

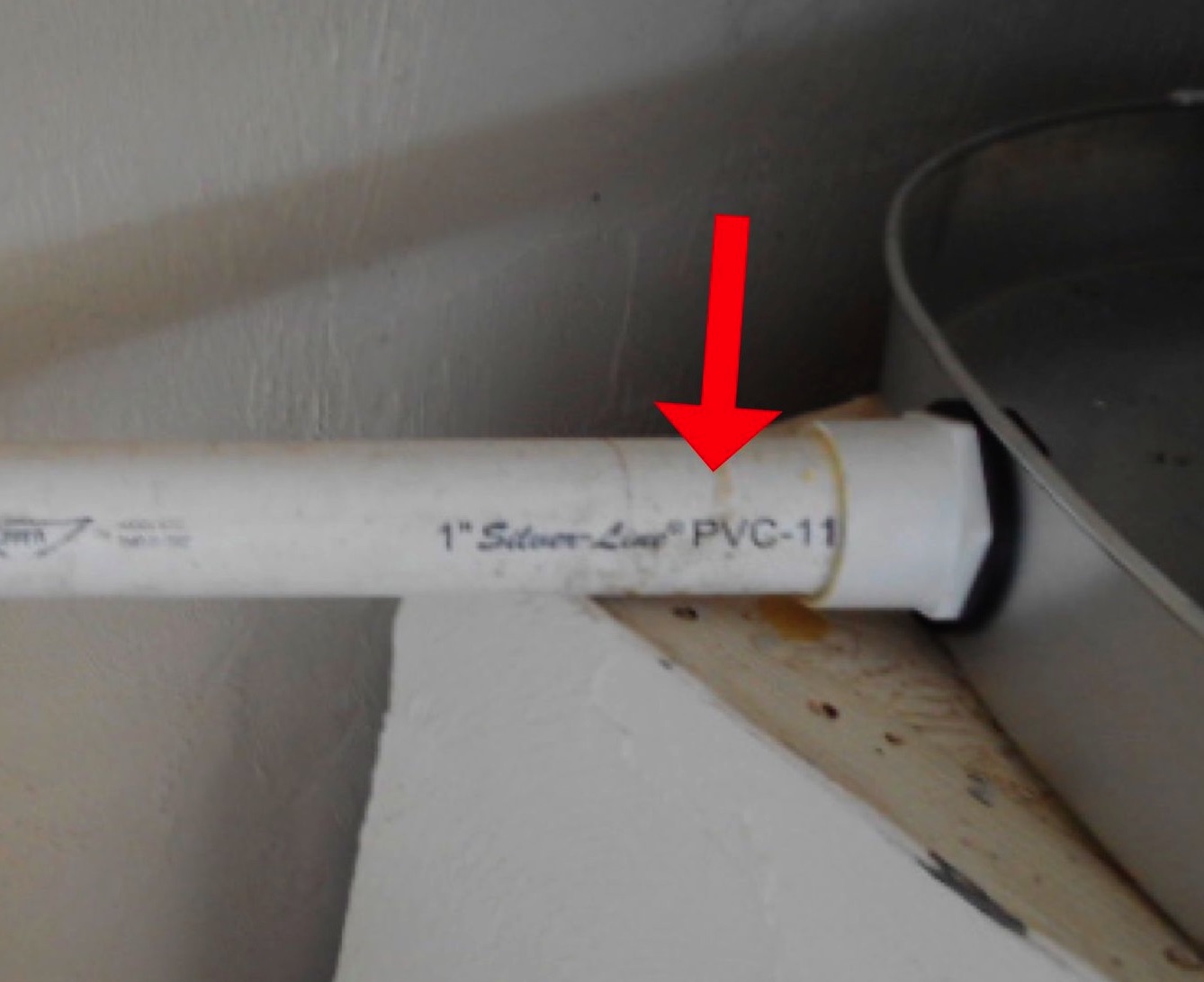

Unrated pipe (PVC) used for part of pan drain piping

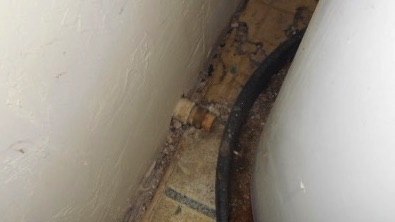

Drain pan not connected to drain piping at wall

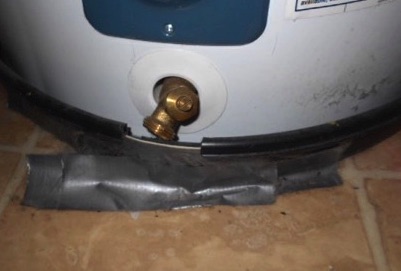

Damaged drain pan

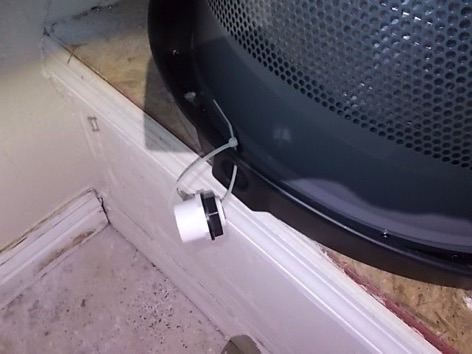

No drain piping from pan
