What is an indirect waste receptor?

Sunday, July 1, 2018

The defining characteristic of an indirect waste flow receptor is a space, called an “air gap,” between the end of the pipe flowing into it and the receptor. The minimum air gap specified is usually twice the diameter of the incoming pipe, but a minimum of one inch. It is required by building codes to prevent the flow of sewage backwards up a pipe when a vacuum is created in the pipe by lack of water pressure.

    A common example of an indirect waste receptor in a home is a drain pipe for a water softener system that dumps into a laundry sink, with the pipe secured so that the end is elevated one inch above the overflow edge of the sink. Indirect waste receptors can also be used for the piping from a water heater drain pan, and typically consist of a one inch gap between the drain pipe pointed downward into a funnel-shape receptor beneath it that connects to a home’s drain/waste system.

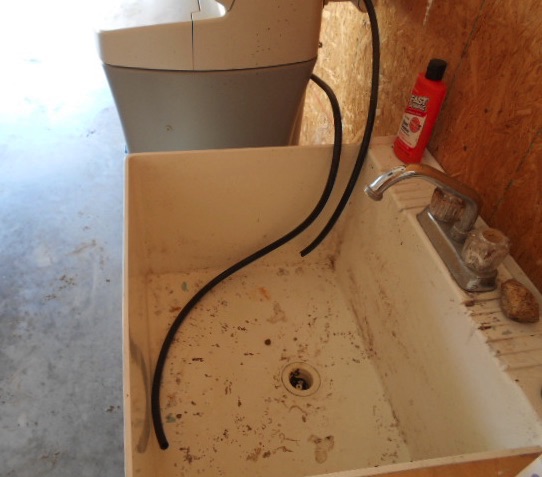

Here’s an example below of the wrong way to drain the flush water from a water softener system.

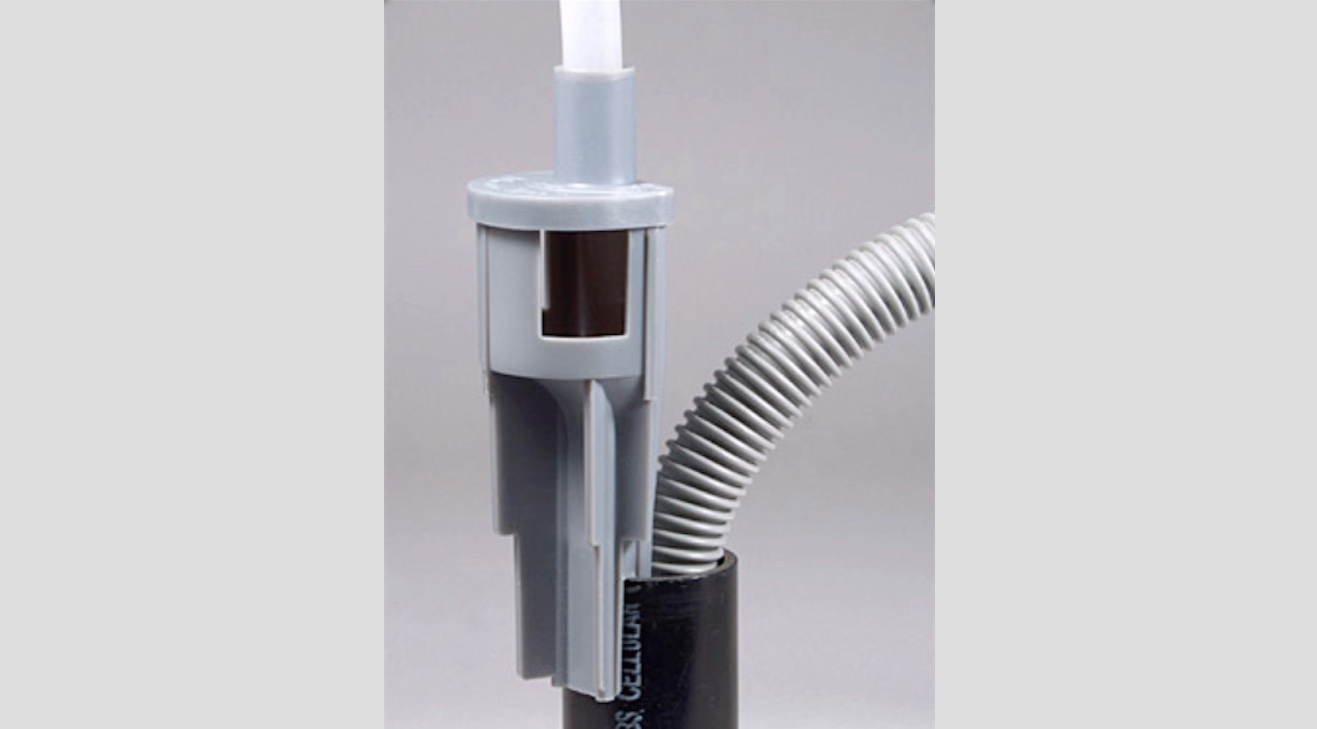

    The standpipe behind a washing machine can also be used as an indirect waste receptor, but maintaining the required one-inch gap can be difficult if the pipe is shared with a washing machine drain hose. The fitting shown at the top of the page is designed to solve the problem, and can be found at www.airgap.com. The one fixture that cannot be used for an indirect waste receptor is a toilet.

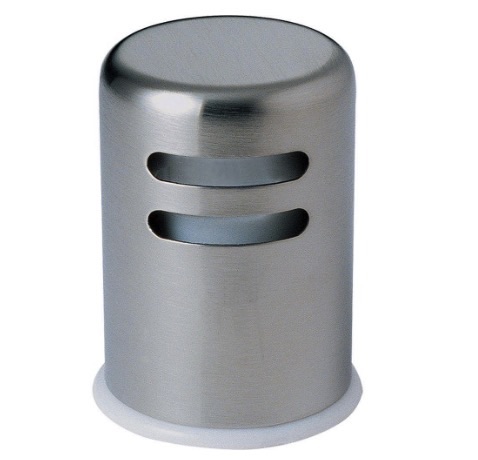

    The air gap device required in many jurisdictions for a dishwasher is another example of an indirect waste receptor, designed to prevent backflow of sewage into a dishwasher. It is mounted near the edge of the sink next to the faucet. A close-up of one is shown below. Some areas allow a loop in the dishwasher drain hose that is secured to the underside of the counter, called an “air gap loop,” as an alternative.
