What is a backstab receptacle outlet?

Monday, July 9, 2018

Backstab receptacles use a spring-metal gripper behind holes in the back of the receptacle to secure the hot and neutral wires when installing a receptacle. You just stab the stripped wire end into the hole and the connection is done. Because they eliminate the work of bending wire ends into a “U” with long-nose pliers and tightening them down under side screws, they were popular during the 1970s and 1980s.

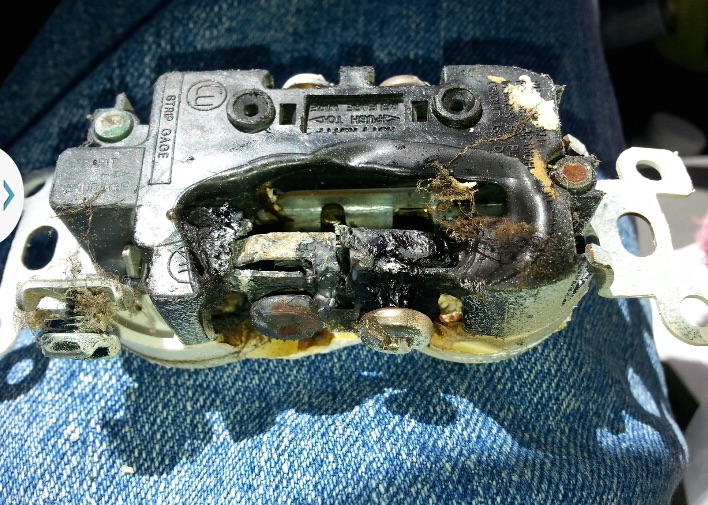

    But backstab receptacles developed a bad reputation with many electricians due to loosening of the spring tension over time, with a resulting short, as in the photo above of the melted back of a failed receptacle. Some electricians will now only use side screw connections and, because of the failures, Underwriter’s Laboratory (UL) revised their standard for stab-in receptacles in 1996 to allow them to be used only with #14 copper wires, eliminating their approval for use with larger #12 copper wire. UL found that too much pressure was being exerted on the spring-metal gripper when the #12 wires, which are thicker and stiffer, were pushed into the outlet box.

    Backstab receptacles should not be confused with a variant called “backwire” receptacles that require tightening a screw to secure the wire in the hole.

    Also see our blog post What are "self-contained" electrical receptacle outlets and switches?

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
