What are the requirements for NM-cables entering an electric panel box?

Saturday, July 7, 2018

NM-cables must be securely fastened where they enter an electric panel, so that tugging on a cable from outside the box will not pull wires loose from their terminations inside.  This is usually accomplished by installation of an NM-connector at the knockout that is secured to the box from both sides and clamps down on the cable. Most NM-connectors are approved for securing only one or two cables, but there are connectors listed to handle even more.

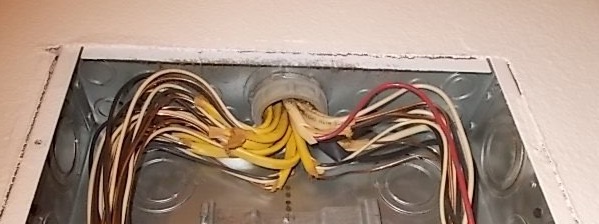

    The configuration shown above, where a cluster of wires enters the top of the box through a single opening, is called a chase nipple. It is a fast and easy way to pull NM-cables into a box, but not code approved.

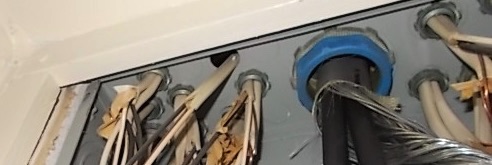

    The photo below shows NM-cables entering the top of a box through NM-connectors (except that one is missing, with a cable poking through it, and will need repair).

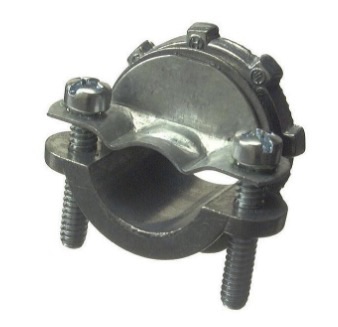

    Also, shown below is a typical NM-connector—viewed from the side that typically would be on the outside of the panel.

    The National Electrical Code [NEC 312.5 (C)] allows one exception to the requirement for securely fastening NM-cables at panel entry, as long as the cables enter the top of a surface-mounted panel box through a non-flexible raceway that is between 18-inches and 10-feet long, and meet the following additional requirements:

  1. Each cable is fastened within 12-inches of the outer end of the raceway.
  2. The raceway extends directly above the panel and does not penetrate a structural ceiling.
  3. A fitting is installed at each end of the raceway to avoid abrasion of the cable jacket and fitting remain accessible after installation.
  4. The raceway is sealed at the outer end.
  5. The cable sheathing is continuous through the raceway and extends a minimum of 1/4” into box enclosure.
  6. The raceway is securely fastened at outer end.
  7. Where installed as conduit, the allowable cable fill should not exceed permitted level in Table 1 of Chapter 9 of NEC Code, approximately 60%.

• • • • • • • • • • • • • • • • • • • • • • • • • •
