Is it acceptable for an air conditioning condensate drain line to terminate under the house?

Friday, July 27, 2018

Letting the condensate water created by your air conditioning system drain under the house is convenient for a mobile home with a split-system air conditioner and an older home with elevated floors over a crawl space. But it causes two problems:

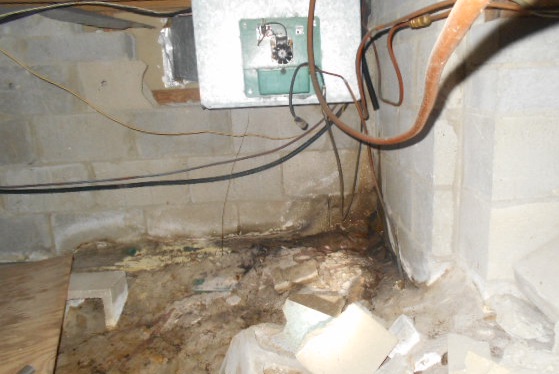

  1. The puddle of water raises the moisture level of the air under the home—exactly where you do not want high humidity. It can lead to mold growth and wood rot on floor joists. The photo above shows a typical situation at a drain under a 1960s house in a corner of the crawl space, with mold and efflorescence on the block wall.
  2. As the saying goes, “out of sight is out of mind.” A termination under the house means that it is not easily checked for clogs or broken pipes. The first sign of a problem is when the drain line backs up into the bottom of the air handler and then onto the floor, or the float switch shuts off the system.

    We always recommend extending an under-the-house drain termination to the exterior of the home, and preferably at least one foot away from the exterior wall. If the location of the air handler and construction of the home makes it difficult to have a simple drain that empties using gravity and a downward slope, then a good alternative is to have an air conditioning contractor install a condensate pump. It would sit on the floor under the air handler, and has a small reservoir to collect the condensate water. When the reservoir is filled, the pump turns on and expels the water through flexible tubing to an exterior location. One option is to run the hose up to the attic, then over to an outside wall and down for drainage.

• • • • • • • • • • • • • • • • • • • • • • • • • • • •
