Is a three-light tester dependable for checking receptacle outlets for wiring problems?

Monday, July 16, 2018

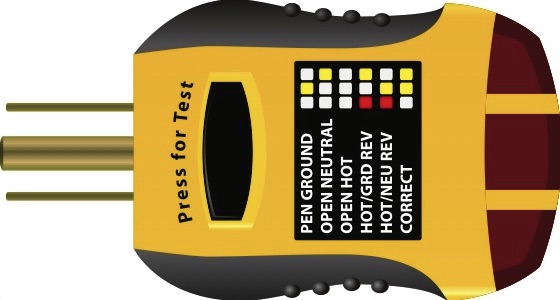

We have used those little three-light testers to check the wiring at wall receptacles for years, but switched to a ground impedance electronic tester lately due to the occasional bad readings that happen with a three-light tester. They are accurate most of the time, but will misdiagnose a problem or call out bad wirng as satisfactory on occasion. And, really, mostly correct is not alright where electrical safety is concerned.

    The light sequence can indicate satisfactory wiring or reversed polarity when the actual problem is an open ground under cetain circumstances. Also, a bootleg ground—where the ground screw at a receptacle is connected to the neutral wire—can easily fool a three-light tester into showing that the wiring is acceptable.

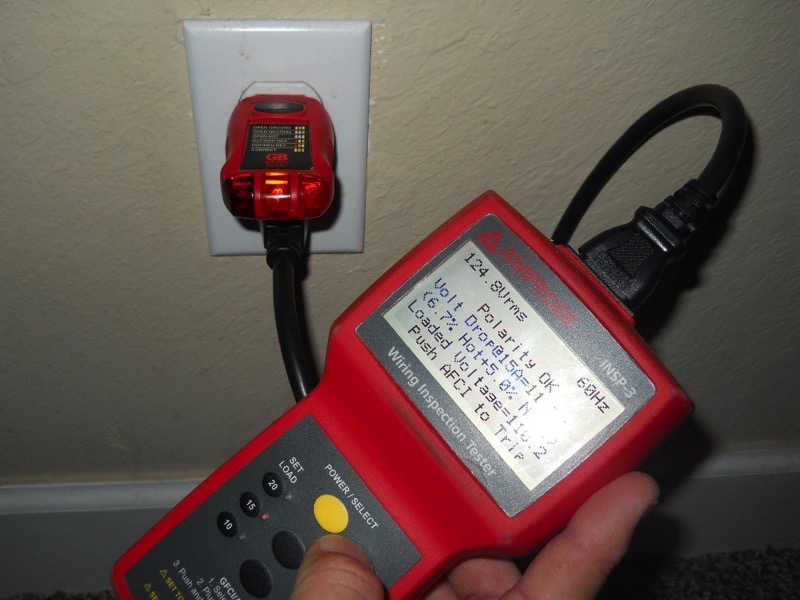

    We previously only used our Amprobe INSP-3 ground impedance tester to double-check defects turned up by the three light tester, but now use it exclusively. The three-light gadget is handy, inexpensive, and fits in your pocket. But accuracy is more important.

    Also see our blog post What is a false ground, bootleg ground, or cheated ground receptacle?

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
