Because an inspection is primarily visual, inspectors are not required to disassemble most components they examine, or troubleshoot any defects they find to determine the cause when is not obvious. The electric panel is one exception. A panel must be opened and the wiring inspected.
But inspectors are not prohibited from pulling the cover plate of a receptacle outlet if they suspect something wrong behind it. Here’s three examples:

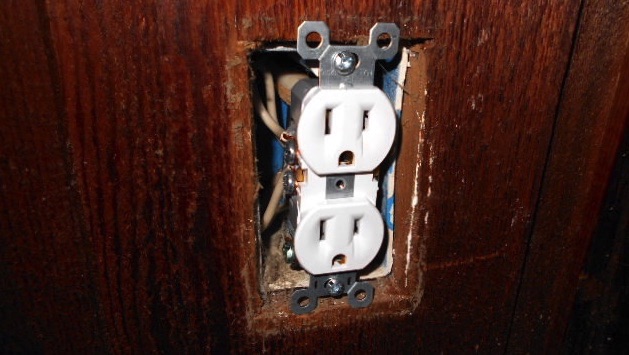

1) When we see a wood wainscot or wall paneling that looks like it might not be part of the original construction of the home, we open at least one cover plate, to see if the receptacle assembly has been pulled forward of the box (like in the photo below), which exposes the flammable wood surrounding it to any arcing at the wire connection.
2) If there is subtle, mottled discoloration of color on a wall surface, it is possible that it was caused by mold growth in the wallboard that was painted over instead of being properly remediated. Any easy way to check is to remove a receptacle cover plate, because a quick paint-over rarely goes all the way behind the cover plate to the edge of the receptacle box.
3) If a homebuyer wants to know what type of insulation sits between the studs in a wood-framed exterior wall, the small gap between the edge of the wallboard and the receptacle, box that is exposed when you remove the cover plate, can help an inspector see the answer—especially if the drywall guy was sloppy cutting the opening.
Also see our blog posts Does a home inspector check every electrical receptacle outlet in a house? and When should I replace electric receptacle outlets? and How can adding wood paneling or a wainscot create an electrical safety hazard?
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
