Can the return air be in the same room as the gas furnace?

Wednesday, July 11, 2018

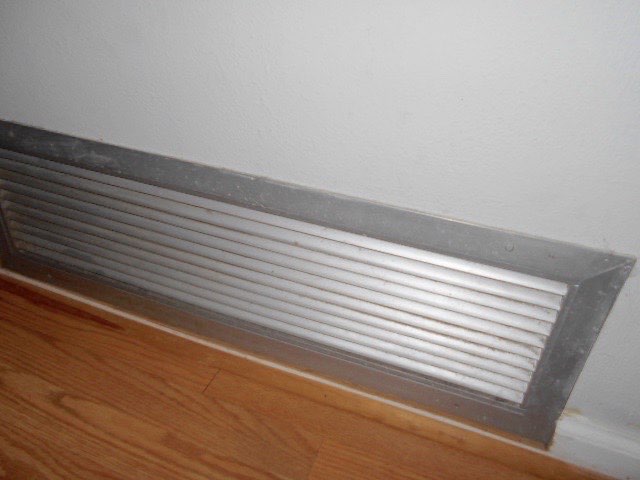

A return air register located in the same room as the furnace can disrupt the flow of air for combustion to the burners, and even suck combustion gases into the return air duct. So it is not a good idea. The problems caused by air being sucked away from the furnace burners are so serious that the access panel to the blower of a furnace (typically at the the bottom of the unit and just below the burners) even has a safety switch that will shut off the system if the panel is open, eliminating the possibility of the blower sucking combustion gases from the burners into the home.

    But the International Residential Code (IRC M1602.2) includes an exception, which allows a sole return air register to be in the same room as the furnace when it meets all of these three conditions:

  1. If supply air is provided (room not sealed), and
  2. If the return is located a minimum of 10 feet away from equipment, and
  3. If the volume of air in the room is a minimum of 100 cubic feet per 1,000 BTU of output rating. A 40,000 BTU/Hr system, for example, would require a room with a volume of 4,000 cubic feet.

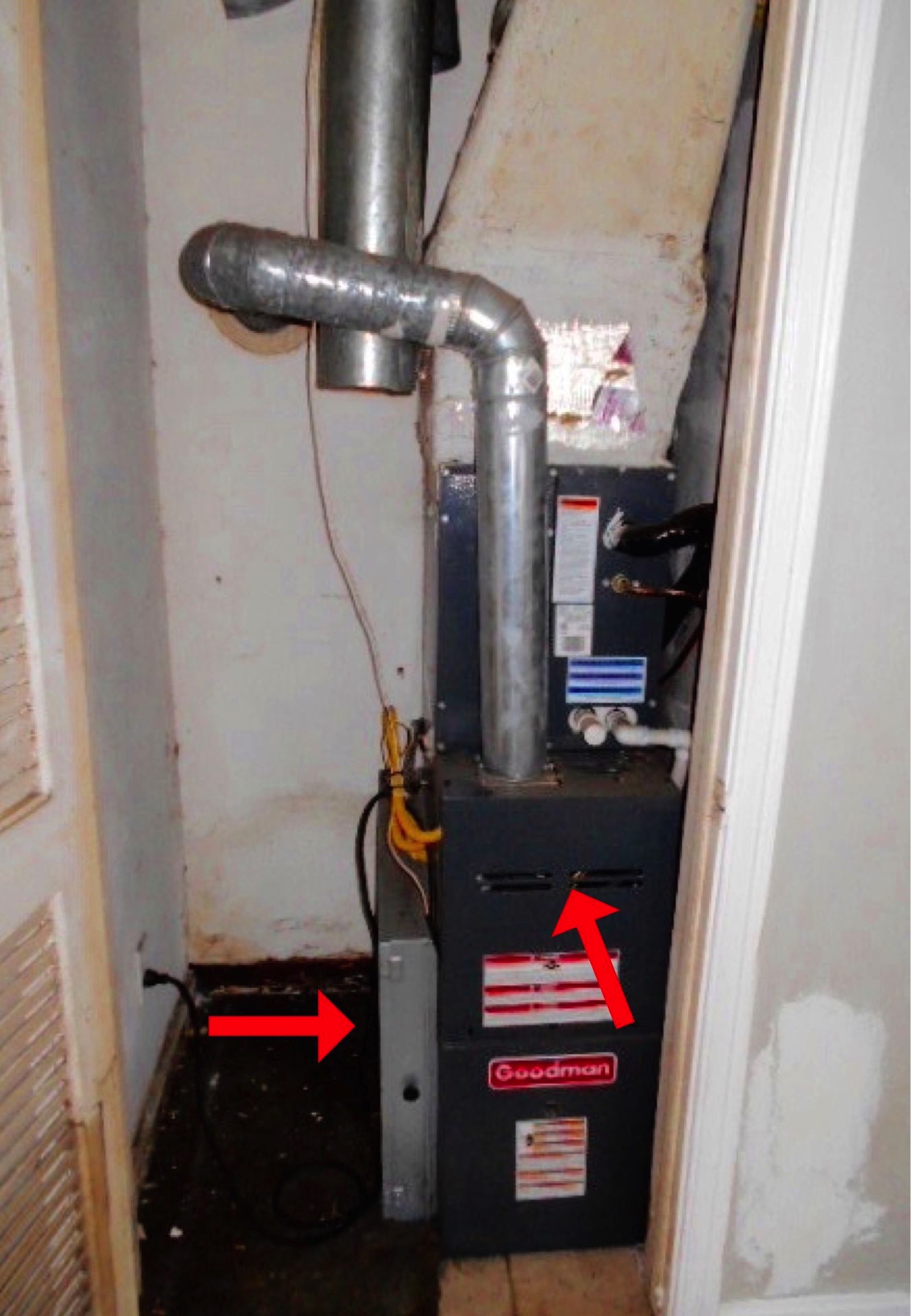

    The photo below shows an example of a furnace that is not compliant with this rule. The return air and filter is on the left side of the base of the unit at left arrow, and combustion air is supplied through the grille slots at the front of the furnace at the right arrow. Not even close to acceptable. This system had multiple other defects and was a classic, unsafe amateur installation.

    Also, see our blog post Is a furnace allowed in a bedroom, bathroom, or an adjoining closet?

*******************************************
