Why is a strain relief clamp necessary for the cord connection to some electric appliances?

Tuesday, June 26, 2018

Appliances like a kitchen disposal and water heater do not come with a power cord installed by the manufacturer because they can be either hard-wired through conduit to an electrical box or utilize a power cord to connect to a receptacle. Clothes dryers do not have a power cord already installed because the homeowner has to match the number of prongs at the end of the cord to the slots in their dryer receptacle at home: either an older-style 3-slot receptacle or a newer 4-slot receptacle. So the cord is purchased separately.

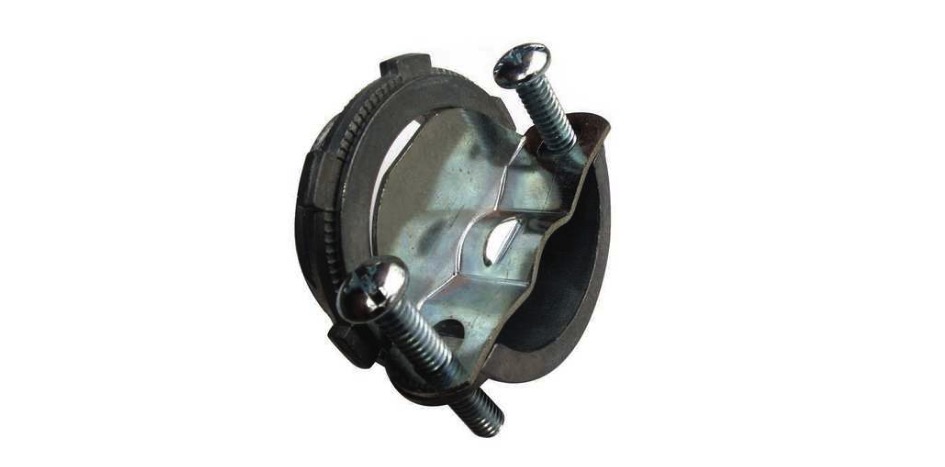

    When a power cord is connected to terminals inside the appliance, the point where the cord penetrates the shell of the appliance needs to have a strain relief clamp, also sometimes called a cord connector, as a securing device. It attaches to the opening (knockout) and snugs down around the cord to do two things:

  1. Keep the wire connections of the cord inside the appliance from coming loose if the cord is tugged.
  2. The rounded edges at the outside of the clamp keep the edge of the casing from cutting into the cord sheathing from any back-and-forth movement of the cord.

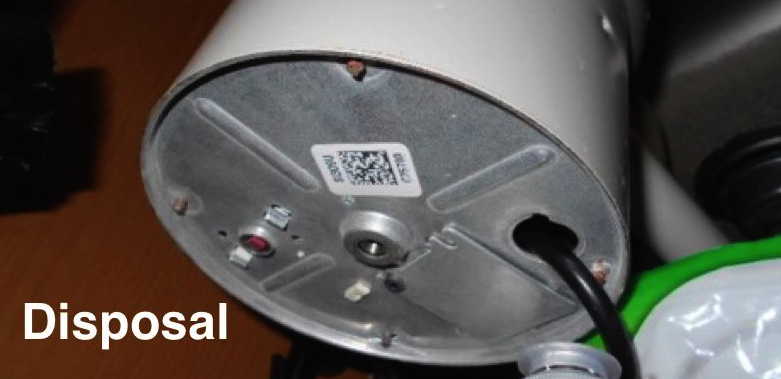

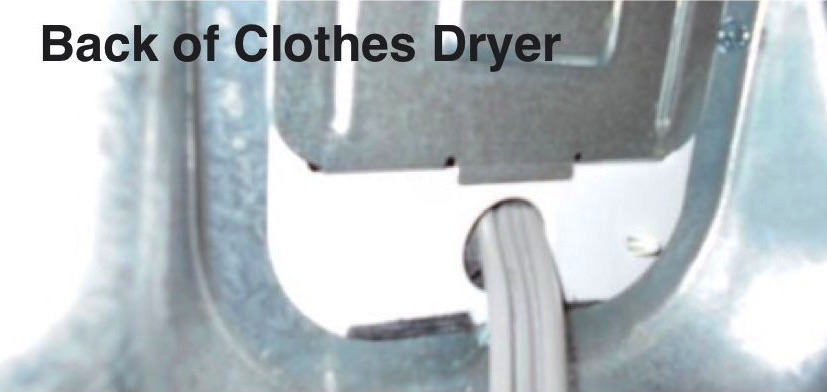

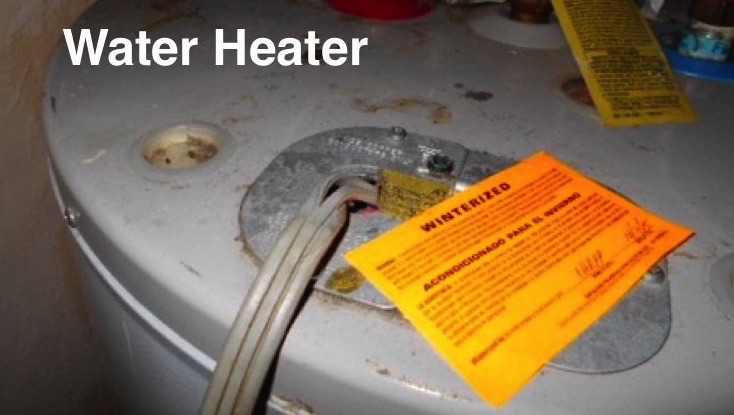

    Here’s three examples below of missing strain relief clamp locations we find during a typical home inspection.

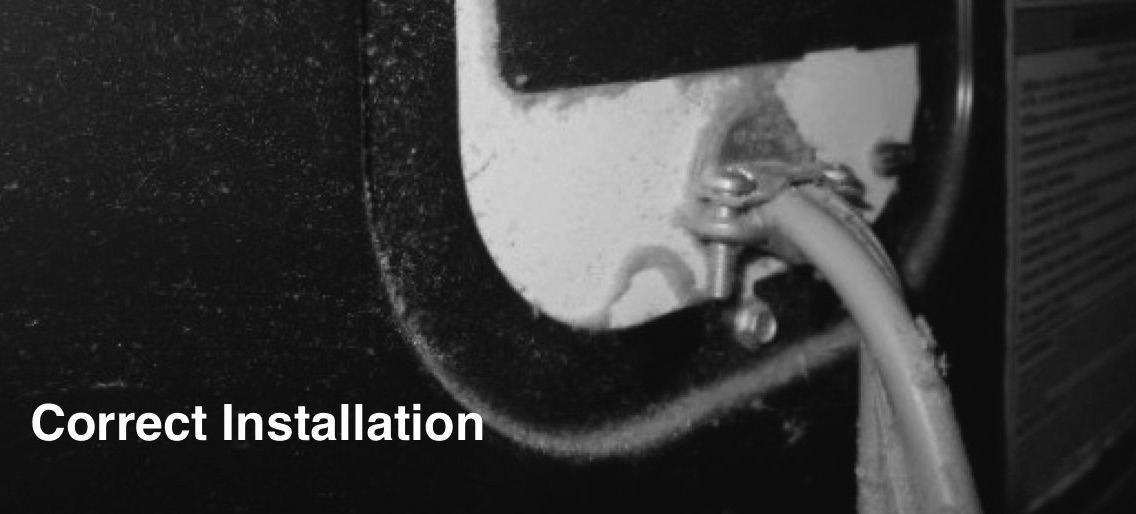

    And here’s a strain relief clamp correctly installed at the back of a dryer.

• • • • • • • • • • • • • • • • • • • • • • • • • • •
