When should a corroded or damaged electric panel cabinet or disconnect box be replaced?

Sunday, June 17, 2018

They are officially called “electrical enclosures,” and serve two primary purposes: to protect the user of the equipment from electrical shock, and shield the internal components from the environment. There may also be secondary requirements, such as heat dissipation, reduction of electromagnetic radio frequency interference, and prevention of damage of the equipment from electrostatic discharge.

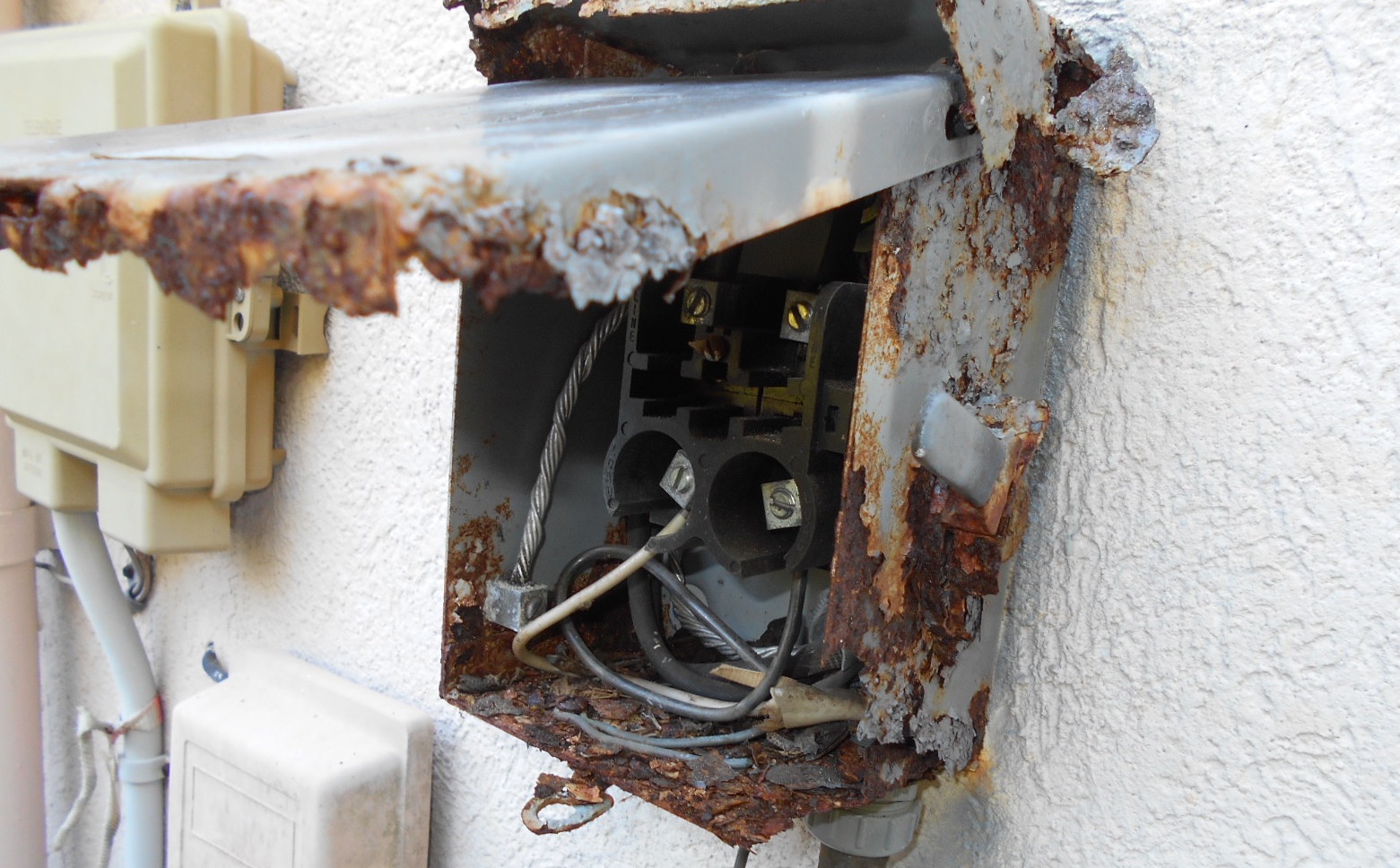

    But, if a panel is not protecting the user of the equipment, and the fingers of any curious children, from electrical shock, and shielding the internal components from the environment, then it should be replaced. The panel shown above is clearly overdue for replacement. It has holes corroded all the way through at the side, a damaged disconnect lever mechanism, and corrosion at wire connections due to water intrusion.

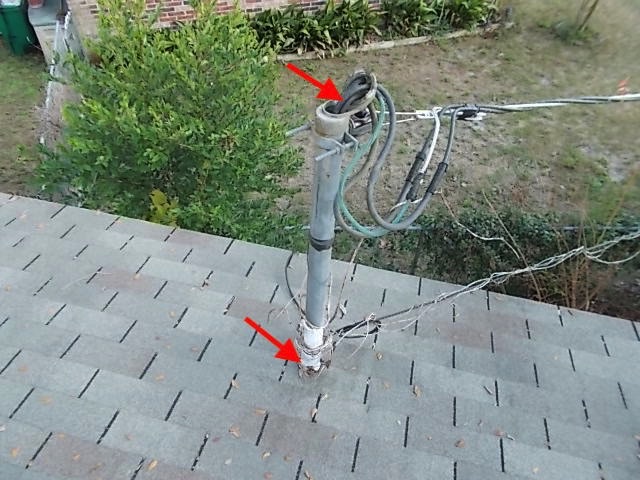

    A panel cabinet that has only minor corrosion should be evaluated to determine the cause of the corroded area, and then repaired, to keep the rust from advancing further. Rain leakage coming down a service mast, for example, can ruin a panel box and circuit breakers if not repaired promptly. The photo below shows two places where rain can come down the service mast: missing cap of weatherhead and missing or deteriorated boot at mast penetration of roof.

    Following the trail of rust-colored drip stains makes that particular problem easy to detect. Location of a panel in an enclosed area with pool equipment or stored pool chemicals can also cause accelerated corrosion due to the chlorine.

• • • • • • • • • • • • • • • • • • • • • • • • • •
