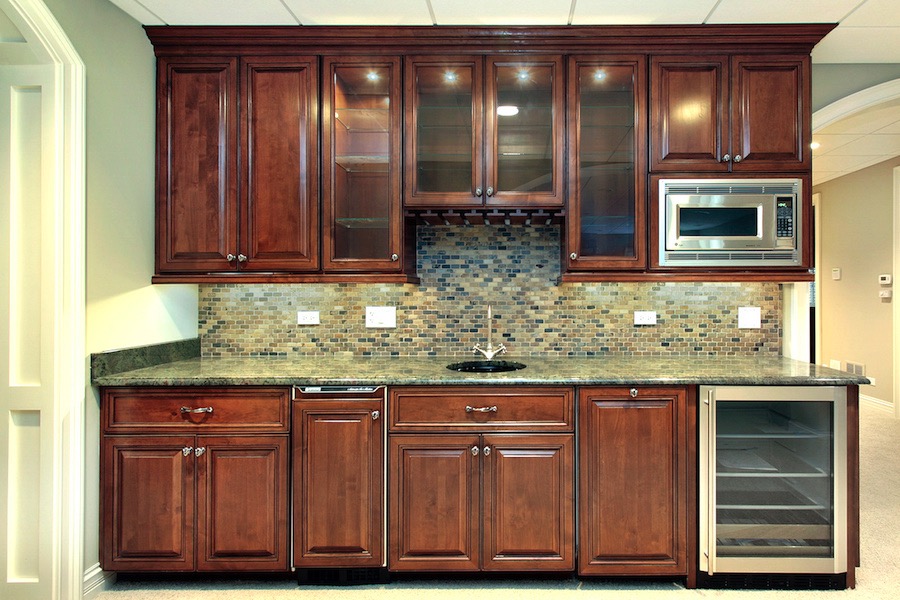

All receptacle outlets within 6 feet of the top inside edge of the bowl of any sink in a residence must be GFCI (Ground-Fault-Circuit-Interrupter) protected, and that includes a wet bar sink, according to the National Electrical Code [NEC 210.8 (A)(7)]. The NEC also states that the 6 foot distance should be measured “as the shortest path the cord of an appliance connected to the receptacle would follow without piercing a floor, wall, ceiling, or fixed barrier, or passing through a door, doorway, or window.”
The requirement has been in effect since the 2005 edition of the NEC, and also applies to laundry and utility sinks. Kitchen sinks were excluded from this standard, because they were covered by separate specs for kitchen counter receptacles, but the exception was deleted in the 2014 edition of the National Electrical Code. See our blog post How far apart should kitchen counter receptacles be spaced?
• • • • • • • • • • • • • • • • • • • • • • • • • • •
