What is a tandem circuit breaker?

Tuesday, June 19, 2018

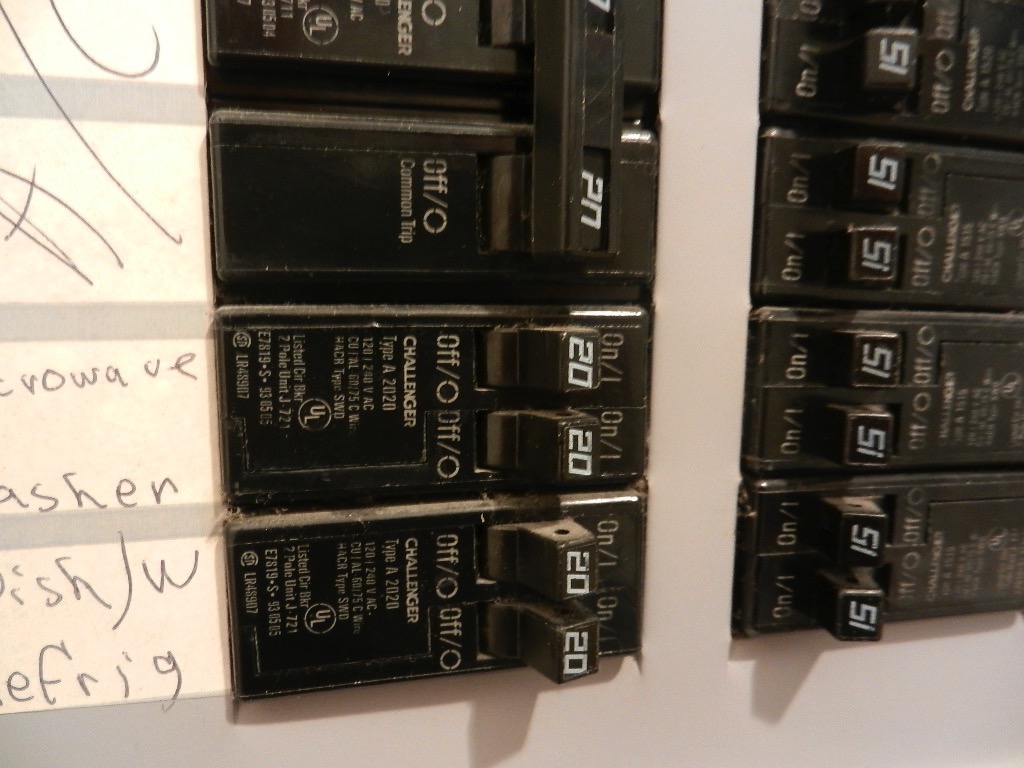

If you see what looks like two narrow circuit breakers in a slot for one breaker in a panel, that’s a tandem circuit breaker. Our customers often refer to them as “those thin breakers,” and they are also called duplex, half-high, slimline, wafer, or even “cheater” breakers by electricians. The breaker switches can be either side by side or one behind the other.

    Tandem breakers are the solution for adding more circuits to a panel that has run out of open slots for expansion. But panel manufacturers may specify limitations to their use. Some don’t allow them at all, and others only approve a limited number at a specific location in the panel. The wiring diagram, located on the inside of the panel door, will have instructions about tandem breakers if there are any restrictions.

    Because both breakers in a tandem are connected to a single 120-volt bus bar, their switches cannot be toggled together to make a 240-volt circuit circuit for a major appliance. Two adjacent tandem breaker sets can, however, have a connecting toggle for a 240-volt circuit.

• • • • • • • • • • • • • • • • • • • • • • • • • •
