What are self-contained electrical receptacle outlets and switches?

Friday, June 22, 2018

Self-contained receptacles and switches are easily recognized at a glance by the lack of the small screws that secure the cover plate of a regular receptacle or switch in place, as shown in the photo above. They are usually found in mobile homes and recreational vehicles, although the devices are also UL-listed for installation in site-built homes.

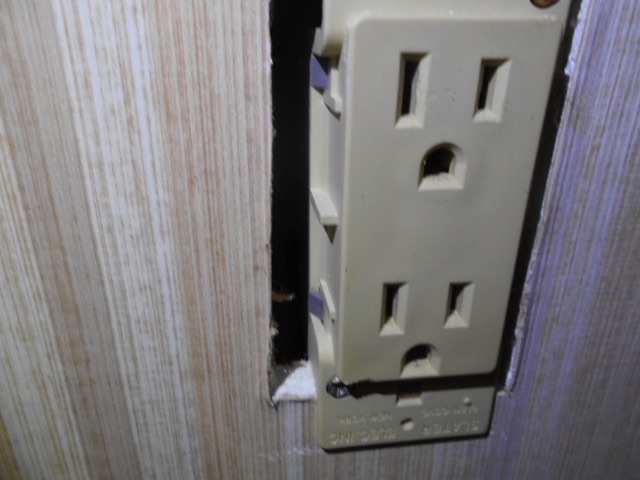

    The cover plate is secured by two plastic prongs at the back that snap into place over the receptacle and can be easily pulled off. If you are not familiar with self-contained receptacles, it can be surprising when you pull the cover plate and discover there is no electrical box behind it, just a hole in the wallboard, as in the photo below.

    There is a also a specially designed tool for connecting NM-cable to self-contained devices that slits and forms the cable for easier installation in body assembly, as in the photo below.

    Self-contained receptacles and switches have the advantage of being easier and faster to install, and require less wall depth than a regular receptacle; but one electrician we talked with is not too fond of them, and replaces self-contained devices with regular ones in an electrical box when they fail.
