What are roofing purlins and battens?
Friday, June 29, 2018

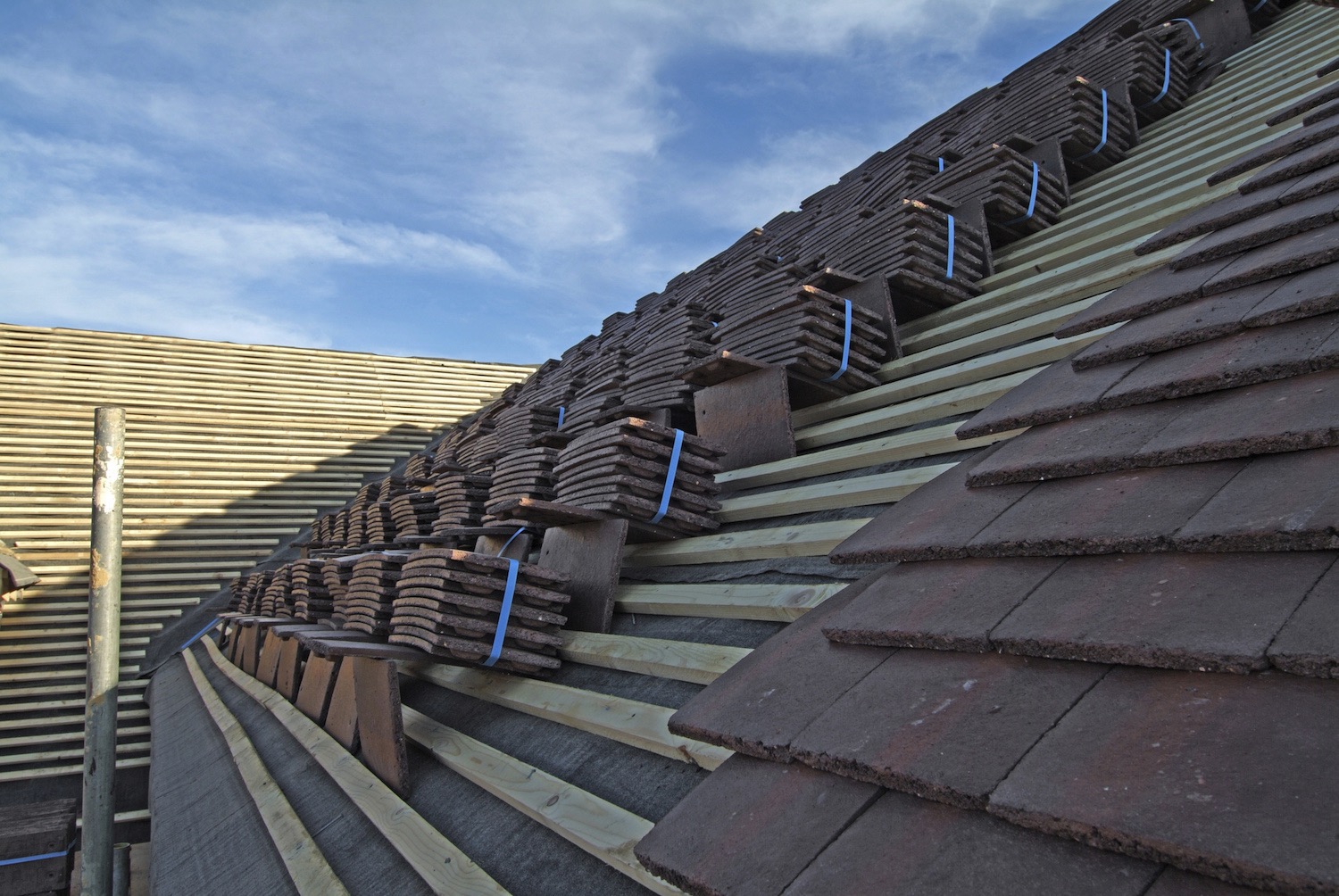

The two words are often used interchangeably and both are long strips, usually wood, used for the attachment of roofing material. But a “purlin” is applied directly onto the roof rafters, running perpendicular between them, while a “batten” is nailed to roof sheathing or applied over an existing roof for installation of a new roof. The photo above shows battens at a tile roof installation in progress.

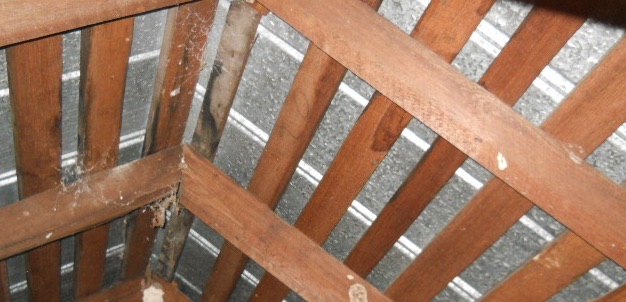

Some types of roofs, such as 5V-crimp metal, were once allowed to be installed directly onto purlins, as shown in the photo below, looking up at the metal roofing from the attic. But building codes now require roof sheathing, plus a layer of roofing felt or other approved water-resistant surface over the sheathing, before installation of the roof covering.

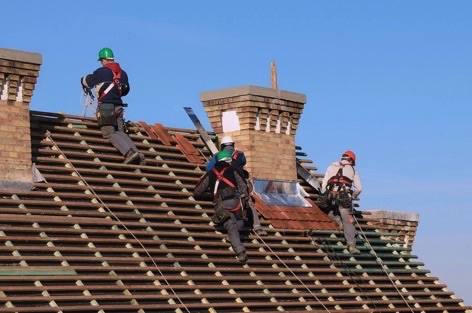

The air gap that battens create between the roof sheathing and roof can be helpful as a thermal barrier. Also, rigid insulation can be placed in the space between battens. Some roof installations go a step further, and utilize battens running up the roof, with a second layer of battens running perpendicular over them, to provide ventilation between the roof material and sheathing at the ridge, as in the the photo below.

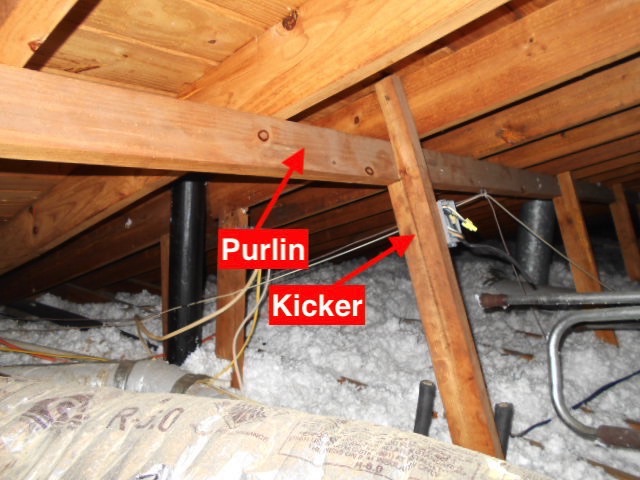

Another type of purlin is used for additional structural support under roof rafters in an older style of roof framing that predates manufactured roof trusses. To learn more about it, go to our blog post Why is there diagonal bracing at the roof rafters in the attic?
And steel purlins are also used in industrial construction, as shown below.
• • • • • • • • • • • • • • • • • • • • • • • • • • • •
