Is it alright to have a shut-off valve on both the hot and cold water pipes at a water heater?
Saturday, June 16, 2018

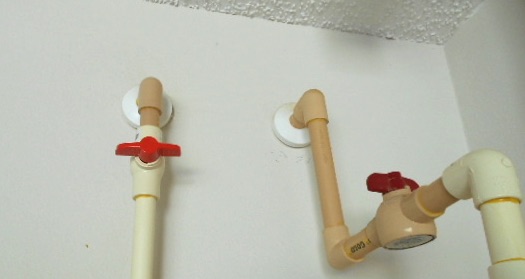

A shut-off valve at the cold water supply pipe to a water heater is specified as necessary by the building code. But we sometimes see a second shut-off valve at the hot water pipe, even though it is not necessary. People that have had the double shut-offs installed say the additional one is good for cutting off hot water to the house, while allowing cold water flow into the water heater, to speed-up flushing out sediment in the bottom when necessary.
The only potential problem we see with two shut-off valves is that it would be possible to isolate the hot water heater from the house plumbing system if both valves were turned off, leaving no room for expansion of the water as it heats—unless there is an expansion tank at the water heater. But that is an unlikely scenario, and the TPR valve would open to release pressure if it got too high anyway.
• • • • • • • • • • • • • • • • • • • • • • • • • • • •
