Does a water heater need a shut-off valve?

Wednesday, June 20, 2018

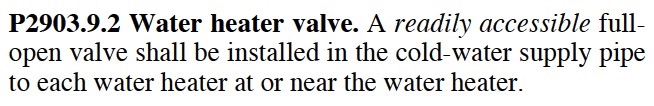

A shut-off valve is required on the cold water supply pipe to water heater. Here’s how the Residential Edition of the Florida Building Code (FBC) and the International Residential Code (IRC) state it:

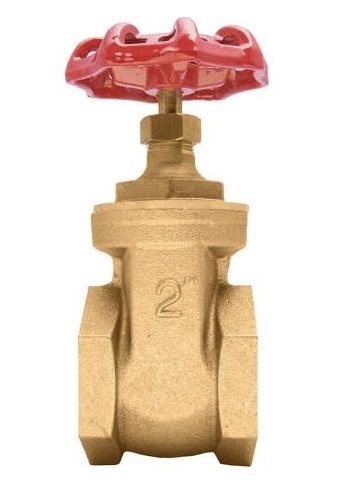

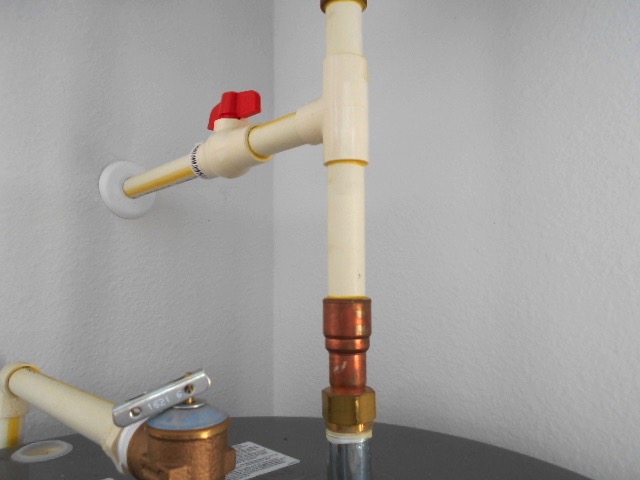

    A “full-open” valve is one that does not restrict the flow of water when open all the way. A ball valve, like the one shown above, which utilizes a center ball with a round tunnel cut out of its center, and a gate valve, which uses a plate that descends across the pipe cross-section to close it, are two types of full-open valves.

    A globe valve, shown in the diagram and photo below, reduces water flow because the water has to zig-zag around a perpendicular opening smaller than the cross-section of the pipe. The globe valve’s advantage is that it can adjust water flow; but that is not something you want to do at a water heater, because the reduced flow can reduce pressure downstream at the fixtures it serves.

    Although gate and globe valves look similar, there are two ways you can tell which one you are looking at:

  1. When viewed from the side, a gate valve has a taller face below the stem.
  2. The handle will rise much higher, with a long stem exposed, when a gate valve is in the open position.

    A valve is necessary to stop the water flow if the tank is leaking or requires repair, without having to lose water service to the entire home, and also when flushing the tank to get rid of sediment accumulation in the bottom.

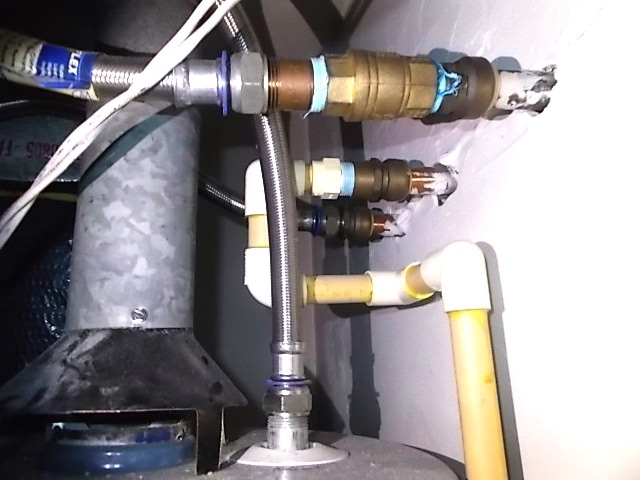

    Sometimes we see shut-off valves at both the hot and cold pipes near the water heater. There is nothing wrong with it, but the second shut-off at the hot water side is not necessary—except as part of a flush kit for a tankless (on-demand) water heat. What we don’t want to see is no shut-off valve at all, like at the water heater shown below. It gets written up as a defect in the home inspection report.

• • • • • • • • • • • • • • • • • • • • • • • • • • • •
