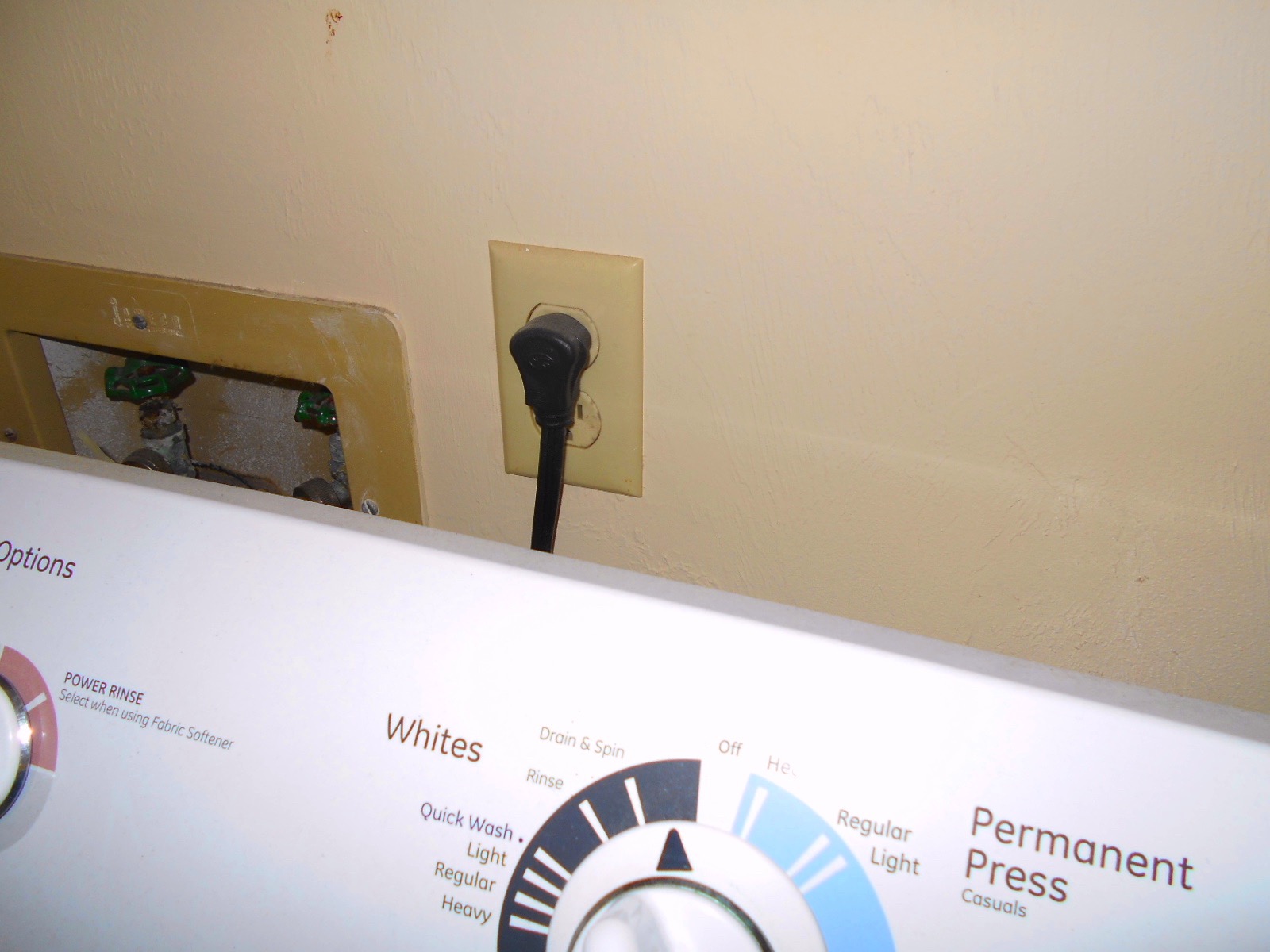

Does a washing machine receptacle outlet require GFCI protection?

Sunday, June 24, 2018

Yes, as of the 2017 edition of the National Electrical Code (NEC), any receptacles in a laundry room must be GFCI-protected. Although the code does not specifically state that a washing machine receptacle has to be GFCI, the washing machine must have water service and a drain, so its location becomes defined as a laundry.

    Previously, the laundry was required to have a receptacle on a 20-amp circuit for the washing machine, but it was not automatically necessary for it to be Ground Fault Circuit Interrupter (GFCI) protected. There were two scenarios where a GFCI would be required:

  1. If the receptacle was within 6 feet of the top inside edge of a sink, such as an adjacent laundry sink, per National Electrical Code, NEC 210.8(A)(7).
  2. If the laundry receptacle was located in a bathroom or unfinished basement, per 210.8(A)(1) and 210.8(A)(5).


    But, as of when your local jurisdiction adopts the 2017 NEC—which may take several years, all washing machine receptacles must be GFCI-protected. See our blog post Where are GFCI receptacle outlets required? for more code-mandated GFCI locations.

• • • • • • • • • • • • • • • • • • • • • • • • • • •
