Does a combination arc fault breaker (CAFCI) also provide GFCI protection?

Thursday, June 14, 2018

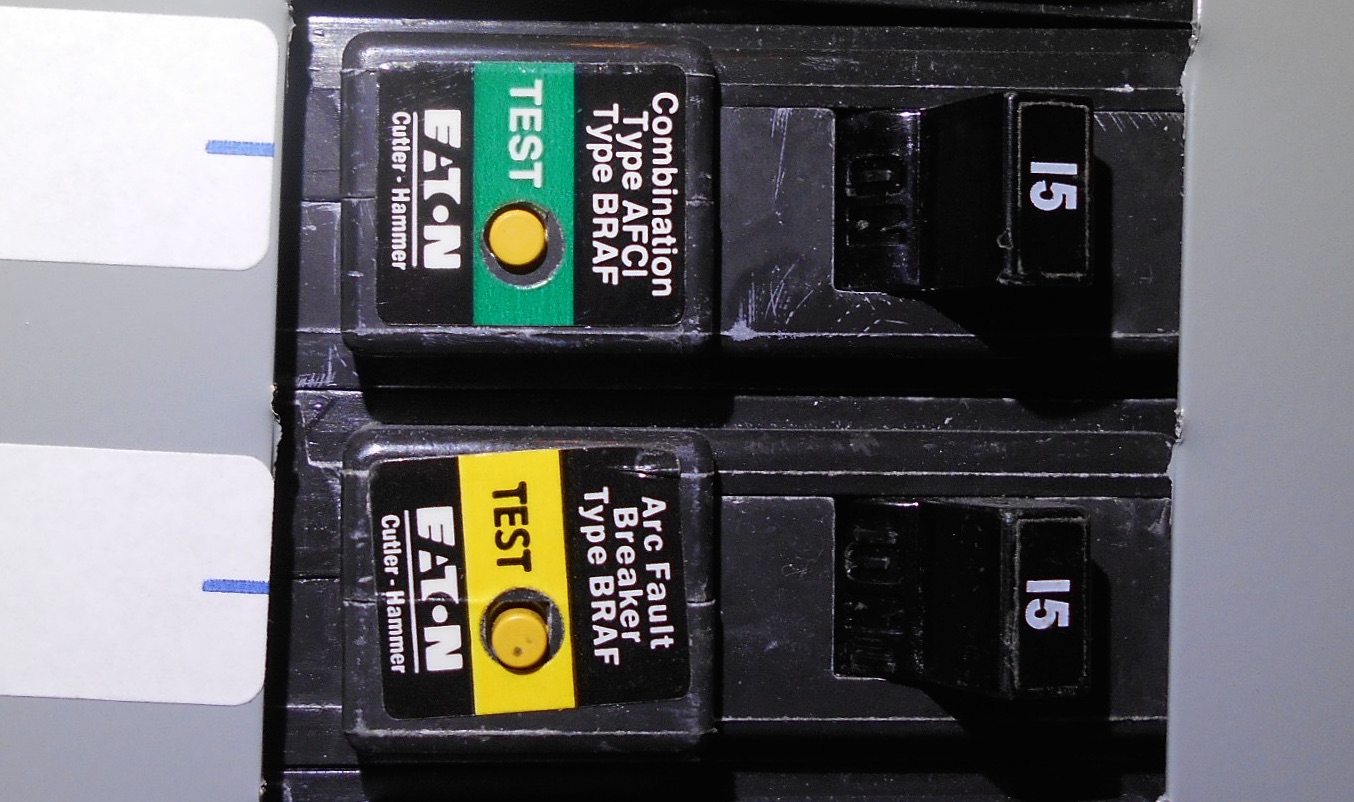

No, a CAFCI breaker is not rated to provide GFCI protection too. The “combination” part of its name came about because the original arc fault circuit interrupters (AFCI’s) only recognized parallel arcing (hot-to-neutral or an arc to ground), but they did not protect against series arcing (between a small gap or frayed area in the same wire, for example). So the Combination-AFCI was developed, which combines protection for both parallel and series arc faults. Beginning in 2008, the National Electric Code (NEC) required the installation of CAFCIs for circuits that the code specifies for arc fault protection.

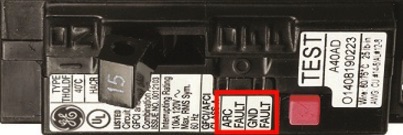

    There is, however, a breaker that provides both CAFCI and GFCI protection. It’s called DFCI, for Dual Function Circuit interrupter, and you can learn more about it at our blog post What is a Dual Function Circuit Interrupter (DFCI)?

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
