Can you wire a 240-volt water heater with 120 volts?

Thursday, June 14, 2018

Ohm’s Law Kicks In

Yes, you can wire a 240-volt rated water heater with 120-volts, exchanging the second hot (red) wire for a white (neutral) wire to the neutral bus. Strange, but true. Because of Ohm’s Law and the fact that the resistance of the circuit stays the same, half the voltage means the watts of heating energy generated is reduced to one quarter of what it was at 240 volts.

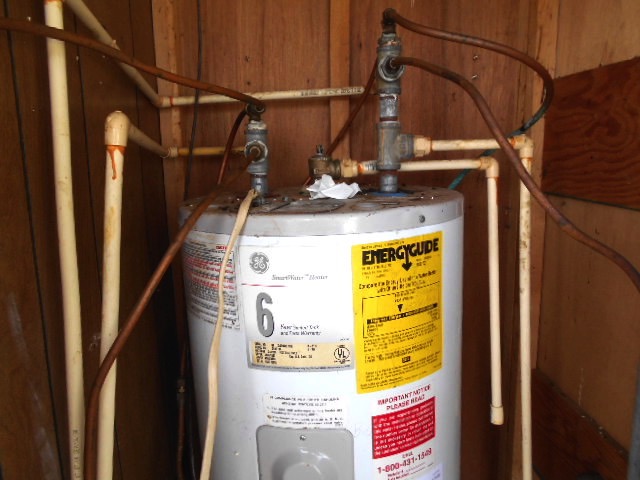

     We came upon that situation today at a homeowner-wired-and-plumbed water heater replacement for a 1970s mobile home, shown above. One look at the plumbing configuration and you know it was not done by a pro. The rating on the data plate is 4500 watts at 240 volts, so it produces 1125 watts with the 120-volt wiring and takes four times as long to heat the water. But it works. Older mobiles often had small, 120-volt water heater heaters and we suspect the existing wiring was reused for the replacement.

    The thermostat is mechanical, not electric, so it is unaffected by the changeover. We doubt that the manufacturer would approve, however, or honor the warranty for a unit wired like this.

• • • • • • • • • • • • • • • • • • • • • • • • • • • •
