Can you use a light switch for a water heater disconnect?

Thursday, June 14, 2018

A wall switch is an acceptable option, but it has to be 30-amp rated for the average 240-volt residential water heater, not a regular 15-amp “light switch.” Also, it must be within sight of the water heater.

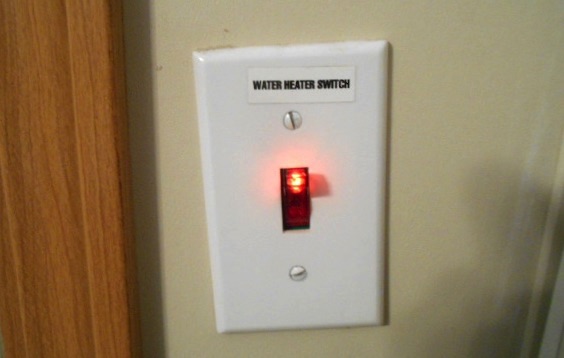

    But this is not necessarily the best choice, because eventually someone in the house will use the switch to try to turn on a light in the closet or room unless it is labeled like in the picture above. After flipping it back and forth several times, they will decide that the switch doesn’t work, leaving it in the off position, and your next shower will be a cold one.

     There are three other options for the required disconnect for an electric water heater, and you can read about them at our blog post Does an electric water heater require a disconnect?

• • • • • • • • • • • • • • • • • • • • • • • • • • • •
