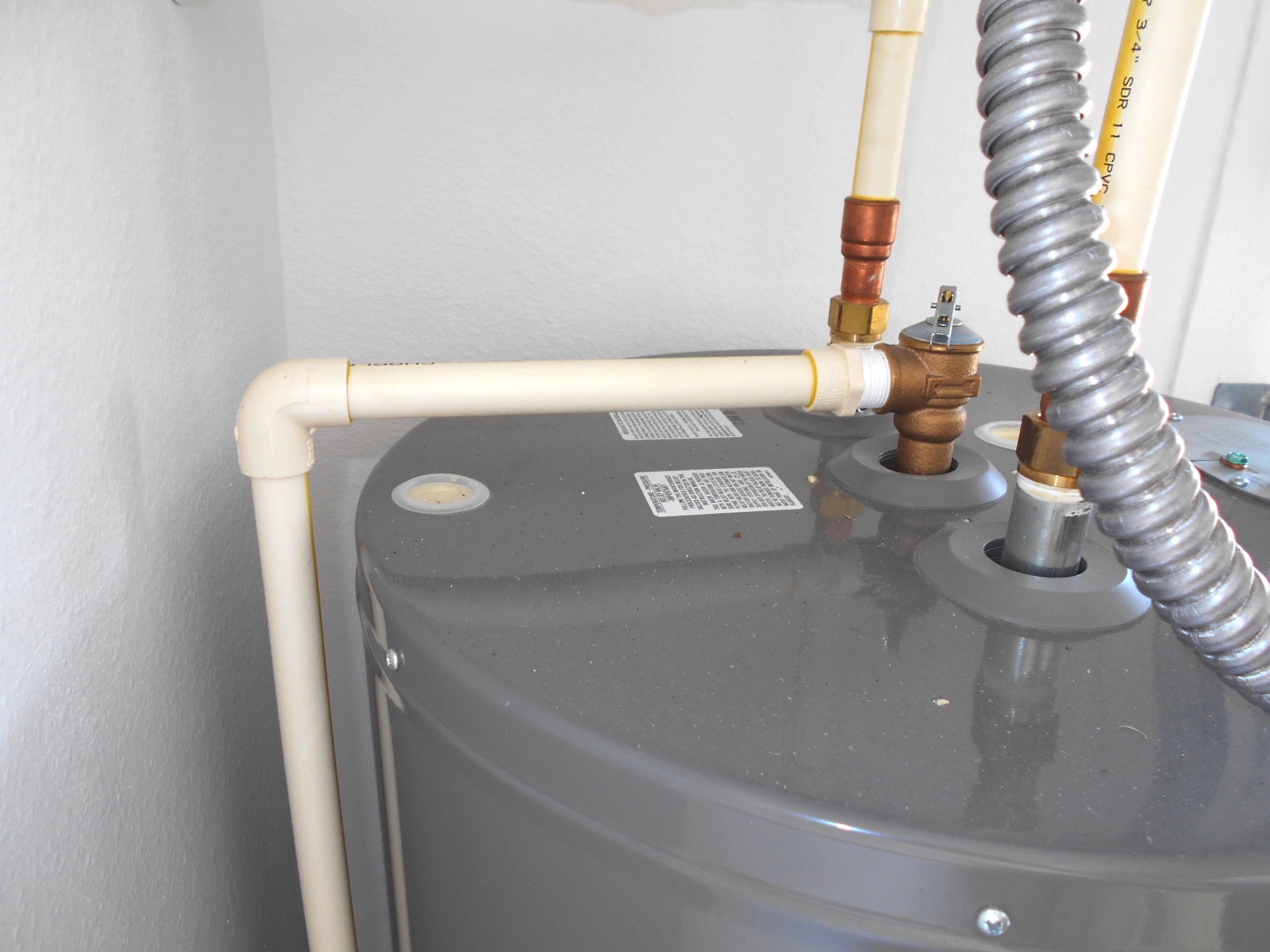

Yes, you can mount a T&P relief valve for a residential water heater horizontally, as long as the discharge piping slopes slightly downward to meet the requirements of the International Residential Code (IRC) and the Florida Building Code, Residential Edition (FBC P2804.6.1), that the discharge piping drain by gravity and not be trapped (not have any standing water remaining in pipe after draining).
T&P relief valves (sometimes called TPR valves) mounted on the side of a water heater can also discharge horizontally if necessary, although they typically discharge vertically downward. Again, the only requirement is that the valve pitch at least slightly downward for full drainage through the discharge piping. Some industrial pressure relief valves are specifically rated to only drain vertically downward, but the technical department of Watts Water Technologies, a leading manufacturer of these residential water heater valves, recently verified for us that horizontal discharge is allowed.

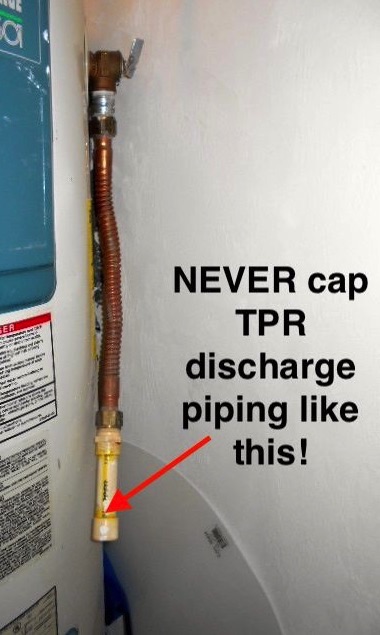

See our blog post What are the most common installation mistakes with water heater replacement? for examples of incorrect TPR valve installation, along with other installation errors, most of which are safety concerns.
• • • • • • • • • • • • • • • • • • • • • • • • • • • • •
