How do the new tamper-resistant electric outlets work?

Tuesday, October 2, 2018

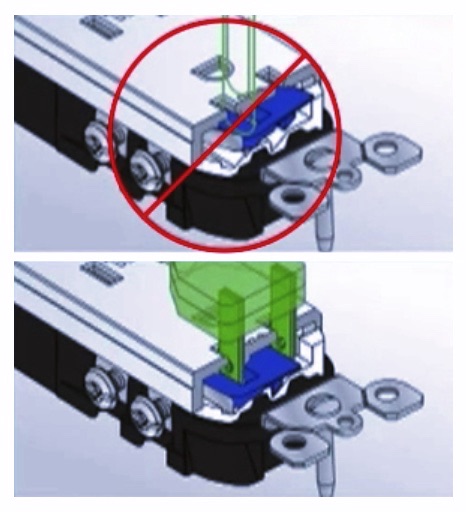

Both of the slots in a tamper-resistant receptacle have spring-loaded shutters over them that are interconnected. Unless pressure is applied to both slots at the same time they will not open; so a child trying to stick a small object a slot will not be successful. Unfortunately, the shutter mechanism can be a little stiff when the receptacle is new, and applying uneven pressure or pressing from an angle will not activate the release mechanism—which is why they are also adult-proof until you get used to them.

   According to the National Fire Protection Association, approximately 2,400 children each year suffer severe shock and burns when they stick items into the slots of receptacles, which also causes an estimated six to twelve fatalities. As a response to this problem, the National Electric Code mandated in 2008 the installation of tamper-proof receptacles at locations in the home within reach of a child in all new and remodeled residential construction—adding approximately $40 to the cost of an average new home with 75 receptacles.

   The letters “TR” embossed on the front of an outlet indicates that it has the required tamper-resistant feature. An additional benefit of the new, safer receptacles is that those annoying little plastic receptacle caps are no longer necessary for newer homes with small children.

    Also, see our blog post When should I replace electric receptacle outlets?

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
